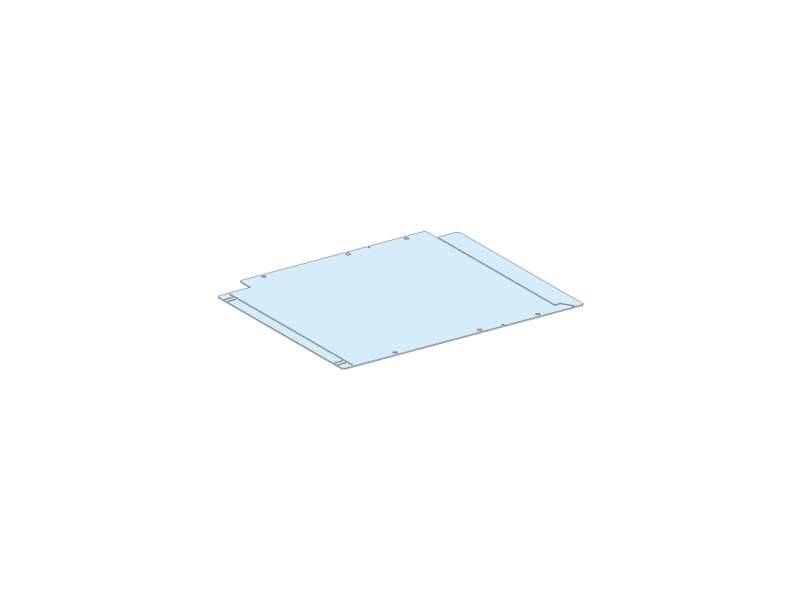

Schneider Electric Plain barrier for bottom horizontal busbars, W = 800 mm, D = 400 mm; LVS04919
Plain barrier for bottom horizontal busbars, W = 800 mm, D = 400 mm...
VAT-exclusive price: 17.054,00 |
VAT-inclusive price: 20.464,80 |
Plain barrier for bottom horizontal busbars, W = 800 mm, D = 400 mm
| Range | PrismaSeT |
|---|---|
| range of product | PrismaSeT P |
| Product or component type | Plain barrier |
| accessory / separate part category | Insulation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) framework |
| Cubicle partitioning form | Form 2 |
| installation description |
Cubicle - width 800 mm, depth 400 mm Cubicle - width 650 + 150 mm, depth 400 mm |
|---|---|
| Installed device | Horizontal busbar |
| Quantity per set | Set of 1 |
| Width | 400 mm |
| Depth | 466 mm |
| Net weight | 1.14 kg |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4 cm |
| Package 1 Width | 35 cm |
| Package 1 Length | 47 cm |
| Package 1 Weight | 2.162 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 22.05 kg |
| Package 3 Height | 43.0 cm |
