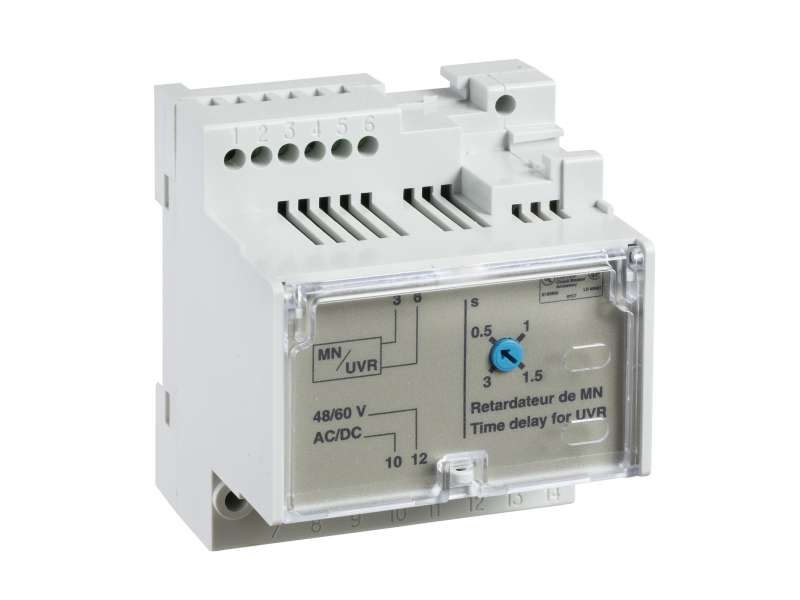

Schneider Electric Podesivi vremenski relej za naponski okidač MN- 48/060 V AC/DC

adjustable time delay relay for MN voltage release, 48/60 VDC, 48/60 VAC 50/60 Hz...

Brand: Schneider Electric
Product Code: 33680
Availability: Check availability

VAT-exclusive price: 69.414,00

VAT-inclusive price: 83.296,80

Qnt:

adjustable time delay relay for MN voltage release, 48/60 VDC, 48/60 VAC 50/60 Hz

Main
device short name	MN delay unit
product or component type	Time delay relay
device application	Control
range compatibility	MasterPact NT Masterpact NW ComPact NSX ComPact NS630b...1600 ComPact NS1600b...3200 PowerPact Multistandard ComPact NSXm ComPact NSX DC Masterpact NW UL 489 Masterpact NT UL 489 Masterpact NW DC
voltage release type	Undervoltage release
[Uc] control circuit voltage	48...60 V AC 50/60 Hz 48...60 V DC

Complementary
impulse duration	200 ms
time delay range	0.5...3 s
threshold tripping voltage	0.35...0.7 Un open 0.85 Un close
supply holding power	4.5 VA
supply inrush power	200 VA
mounting mode	External mounting
response time	0.5 s 1 s 1.5 s 3 s
accessory / separate part category	Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	214 g
Package 1 Height	8.4 cm
Package 1 width	7.6 cm
Package 1 Length	9 cm
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Weight	4.339 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
PVC free	Yes
California proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contractual warranty
Warranty	18 months
