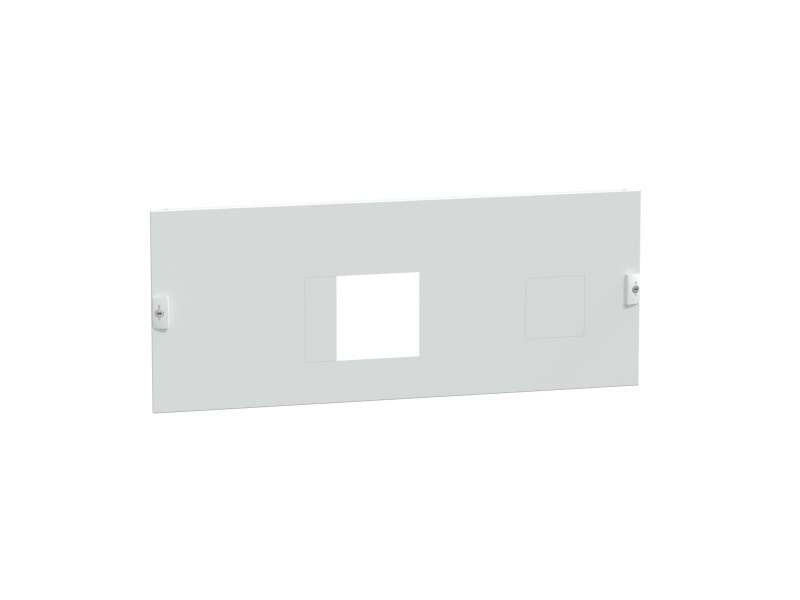

Schneider Electric Poklopna ploča NSX630 hor. fiksni, ručica. Š850 6M; LVS03289
Front plate, PrismaSeT G, for NSX/NSX Vigi(ELCB) 400/630, horizontal fixed, toggle, 6M, W850...
VAT-exclusive price: 7.698,00 |
VAT-inclusive price: 9.237,60 |
Front plate, PrismaSeT G, for NSX/NSX Vigi(ELCB) 400/630, horizontal fixed, toggle, 6M, W850
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed NSX400 without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSX630 without earth leakage protection - control: toggle - horizontal installation |
| Poles description |
1 x 3P: mounting plate support: NSX400 horizontal installation 1 x 4P: mounting plate support: NSX400 horizontal installation 1 x 3P: mounting plate support: NSX630 horizontal installation 1 x 4P: mounting plate support: NSX630 horizontal installation |
| Operating position | Horizontal |
| Enclosure/cubicle description | Floor-standing enclosure - width 850 mm |
|---|---|
| Connection position | Connection block |
| Number of vertical modules [50 mm] | 6 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 300 mm |
| Width | 850 mm |
| Product weight | 1.92 kg |
| Quantity per set | Set of 1 |
| functional unit |
850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 direct with long terminal shield 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 direct with long terminal shield 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 direct with long terminal shield 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 direct with long terminal shield 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 direct with long terminal shield 9 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 direct with long terminal shield 6 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 direct with long terminal shield 6 |
| IP degree of protection | IP30 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 30.0 cm |
| Package 1 Length | 75.0 cm |
| Package 1 Weight | 1.975 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 6.5 cm |
| Package 2 Width | 32.0 cm |
| Package 2 Length | 78.0 cm |
| Package 2 Weight | 8.289 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 40 |
| Package 3 Height | 47.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 94.5 kg |
-
PrismaSeT G LVS03289
