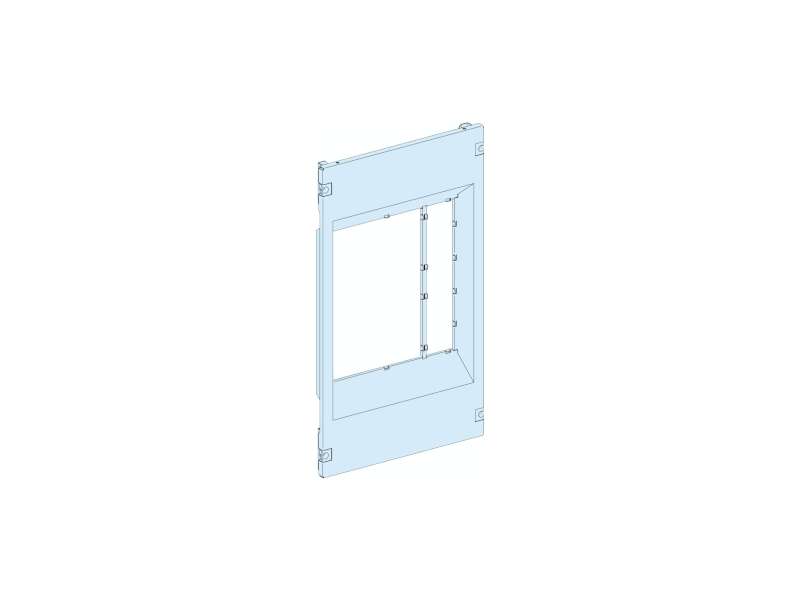

Schneider Electric Poklopna ploča za izvlačivi NS-MTZ1/NT, 3P, Š = 400 mm; LVS03699
FR.PL WITHD NS-MTZ1/NT 3P W400...
VAT-exclusive price: 6.925,00 |
VAT-inclusive price: 8.310,00 |
FR.PL WITHD NS-MTZ1/NT 3P W400
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: drawout NS1250 - control: toggle - vertical installation ComPact: drawout NS1250 - control: direct front rotary handle - vertical installation ComPact: drawout NS1250 - control: motor mechanism - vertical installation ComPact: drawout NS1600 - control: toggle - vertical installation ComPact: drawout NS1600 - control: direct front rotary handle - vertical installation ComPact: drawout NS1600 - control: motor mechanism - vertical installation ComPact: drawout NS630b...1000 - control: toggle - vertical installation ComPact: drawout NS630b...1000 - control: direct front rotary handle - vertical installation ComPact: drawout NS630b...1000 - control: motor mechanism - vertical installation Masterpact: drawout NT06...10 - control: toggle - vertical installation Masterpact: drawout NT12 - control: toggle - vertical installation Masterpact: drawout NT16 - control: toggle - vertical installation |
| Poles description |
1 x 3P: mounting plate support: NS1250 vertical installation 1 x 3P: mounting plate support: NS1600 vertical installation 1 x 3P: mounting plate support: NS630b...1000 vertical installation 1 x 3P: mounting plate support: NT06...10 vertical installation 1 x 3P: mounting plate support: NT12 vertical installation 1 x 3P: mounting plate support: NT16 vertical installation |
| Operating position | Horizontal |
| Enclosure/cubicle description | Cubicle duct - width 400 mm depth 400 mm |
|---|---|
| Connection position |
Direct connection Front connection |
| Number of vertical modules [50 mm] | 10 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 554 mm |
| Width | 321 mm |
| Net weight | 2.04 kg |
| Quantity per set | Set of 1 |
| functional unit |
400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout toggle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout direct front rotary handle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 drawout motor mechanism vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 direct 36 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection 36 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection 36 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 drawout toggle vertical 3P 1 front connection 36 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 32.500 cm |
| Package 1 Length | 56.600 cm |
| Package 1 Weight | 1.973 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.795 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 44.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 54.500 kg |
