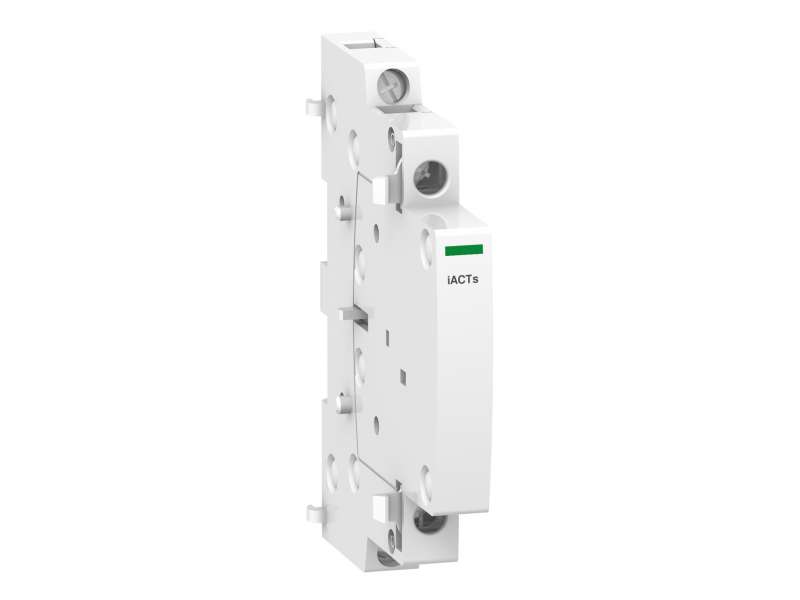

Schneider Electric Pomoćna daljinska indikacija, Acti9 iACTs, 1 NO + 1 NC; A9C15914
Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC...
VAT-exclusive price: 5.864,00 |
VAT-inclusive price: 7.036,80 |
Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC
| range of product |
ICT
|
|
|---|---|---|
| range |
Acti 9
|
|
| device short name |
IACTs
|
|
| product or component type |
Remote indication auxiliary
|
|
| signal contacts composition |
1 NO + 1 NC
|
| signalling circuit voltage |
24 V AC/DC: 10 mA
230 V AC: 50/60 Hz 5 A 230 V AC: 50/60 Hz 2 A 130 V DC: 1 A |
|
|---|---|---|
| [Uc] control circuit voltage |
24...240 V AC 50/60 Hz
24...130 V DC |
|
| range compatibility |
Acti 9 iCT
|
|
| [Ui] rated insulation voltage |
440 V
|
|
| [Uimp] rated impulse withstand voltage |
4 kV
|
|
| mounting mode |
Fixed, on the right of CT
|
|
| mounting support |
35 mm symmetrical DIN rail
|
|
| 9 mm pitches |
1
|
|
| height |
81 mm
|
|
| width |
9 mm
|
|
| depth |
68 mm
|
|
| colour |
White
|
|
| auxiliary connection terminal |
Tunnel type terminals2 cable(s) flexible 2.5 mm²
Tunnel type terminals2 cable(s) rigid 1.5 mm² Tunnel type terminals1 cable(s) rigid 1.5…2.5 mm² Tunnel type terminals1 cable(s) flexible 1.5…2.5 mm² |
|
| wire stripping length |
9 mm
|
|
| tightening torque |
0.8 N.m
|
|
| product compatibility |
ICT
|
|
| market segment |
Small commercial
Residential |
|
| compatibility code |
IACTs
|
| standards |
EN 60947-5
|
|
|---|---|---|
| IP degree of protection |
IP20
IP20 conforming to IEC 60529 |
|
| tropicalisation |
2
|
|
| relative humidity |
95 % at 55 °C
|
|
| ambient air temperature for operation |
-5…50 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
44 g
|
|
| Package 1 Height |
2.2 cm
|
|
| Package 1 width |
7.5 cm
|
|
| Package 1 Length |
8.5 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
503 g
|
|
| Package 2 Height |
9 cm
|
|
| Package 2 width |
8 cm
|
|
| Package 2 Length |
23 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
120
|
|
| Package 3 Weight |
6.273 kg
|
-
Acti 9 iCT A9C15914
