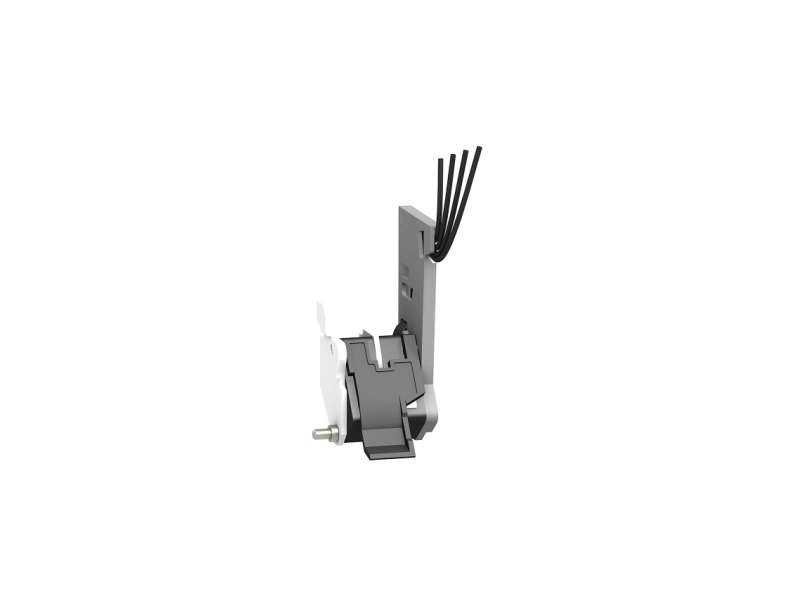

Schneider Electric Pomoćni kontakt - 2 OC prevremeno uključenje - NSX100 - 250;LV429346
standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types...
VAT-exclusive price: 4.661,00 |
VAT-inclusive price: 5.593,20 |
standard early make contact, ComPact NSX100 to NSX630, rotary handle position CAF, 2 changeover contact types
| range of product |
ComPact NSX100...250 ComPact NSX100...250 DC ComPact NSX400...630 ComPact NSX400...630 DC |
|---|---|
| range | ComPact |
| device short name | 2 early-make contacts |
| product or component type | Auxiliary contact |
| device application | Control |
| range compatibility |
ComPact NSX ComPact NSX DC PowerPact H PowerPact J PowerPact L |
| auxiliary contacts type | Standard |
|---|---|
| auxiliary contacts operation | Early-make |
| mounting mode | Drawout |
| [Ith] conventional free air thermal current | 6 A |
| [Ie] rated operational current |
AC-12: 6 A at 110 V AC 50/60 Hz AC-12: 6 A at 220/240 V AC 50/60 Hz AC-12: 6 A at 24 V AC 50/60 Hz AC-12: 6 A at 380/440 V AC 50/60 Hz AC-12: 6 A at 48 V AC 50/60 Hz AC-12: 6 A at 480 V AC 50/60 Hz AC-12: 6 A at 660/690 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz AC-15: 1.5 A at 480 V AC 50/60 Hz AC-15: 2 A at 380/440 V AC 50/60 Hz AC-15: 4 A at 220/240 V AC 50/60 Hz AC-15: 5 A at 110 V AC 50/60 Hz AC-15: 6 A at 24 V AC 50/60 Hz AC-15: 6 A at 48 V AC 50/60 Hz DC-12: 0.3 A at 250 V DC DC-12: 0.6 A at 110 V DC DC-12: 2.5 A at 48 V DC DC-12: 6 A at 24 V DC DC-14: 0.03 A at 250 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.2 A at 48 V DC DC-14: 1 A at 24 V DC |
| minimum load | 100 mA at 24 V DC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 66.0 g |
| Package 1 Height | 4.0 cm |
| Package 1 width | 6.5 cm |
| Package 1 Length | 8.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 45 |
| Package 2 Weight | 3.489 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
