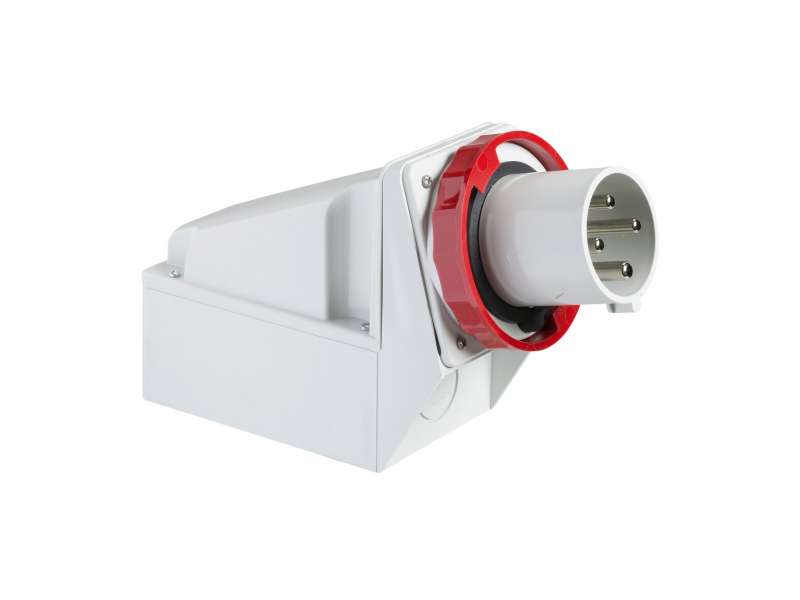

Schneider Electric PratiKa industrijski utikač - 63 A - 3P + E - 380...415 V AC - IP67; 81582
PratiKa industrial plug - 63 A - 3P + E - 380...415 V AC - IP67...
VAT-exclusive price: 10.596,00 |
VAT-inclusive price: 12.715,20 |
PratiKa industrial plug - 63 A - 3P + E - 380...415 V AC - IP67
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Plug
|
|
| device short name |
PratiKa plug
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
3P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Wall-mounted
|
|
|---|---|---|
| plug, socket, control station shape |
Angled
|
|
| [In] rated current |
63 A
|
|
| [Ue] rated operational voltage |
380...415 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| plug, socket material |
Self-extinguishing engineering polymer
|
|
| contacts material |
Pins: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
6…25 mm²
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 36
|
|
| net weight |
1.043 kg
|
|
| base dimension |
104 x 162 mm
|
|
| height |
281 mm
|
|
| width |
104 mm
|
|
| depth |
180 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Red
|
| standards |
EN 60309-2
EN 60309-1 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.01 kg
|
|
| Package 1 Height |
10.4 cm
|
|
| Package 1 width |
18 cm
|
|
| Package 1 Length |
28.1 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
4
|
|
| Package 2 Weight |
4.527 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
-
Pratika 81582
