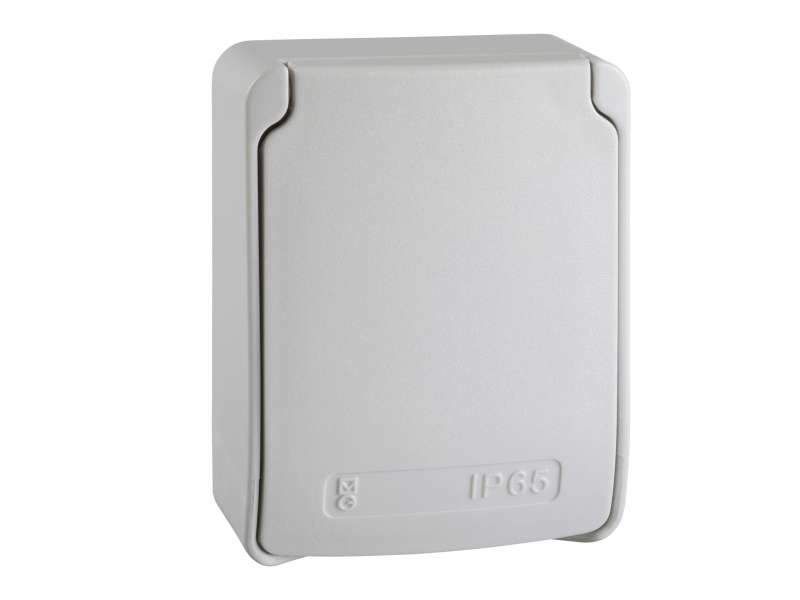

Schneider Electric PratiKa utičnica-siva- 2P+E -10/16A - 250V- italijanski stand.- IP65-nadgradna ; 81139
PratiKa socket - grey - 2P + E - 10/16 A - 250 V - Italian - IP65 - surface...
VAT-exclusive price: 2.068,00 |
VAT-inclusive price: 2.481,60 |
PratiKa socket - grey - 2P + E - 10/16 A - 250 V - Italian - IP65 - surface
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Socket
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
2P + E
|
|
| network type |
AC
|
|
| outlet standard |
Domestic
Italian |
| [In] rated current |
16 A
10 A |
|
|---|---|---|
| network frequency |
50/60 Hz
|
|
| [Ue] rated operational voltage |
250 V
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Pins: stainless steel
Springs: stainless steel |
|
| cover type |
Lid
|
|
| device mounting |
Surface
|
|
| mounting mode |
Panel-mounted
|
|
| socket number |
2
|
|
| connections - terminals |
Captive screws
|
|
| net weight |
0.13 kg
|
|
| base dimension |
65 x 85 mm
|
|
| height |
85 mm
|
|
| width |
65 mm
|
|
| depth |
45.2 mm
|
|
| colour |
Grey (RAL 7035)
|
| standards |
IEC 60884
|
|
|---|---|---|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Package 1 Weight |
0.130 kg
|
|
|---|---|---|
| Package 1 Height |
0.400 dm
|
|
| Package 1 width |
0.850 dm
|
|
| Package 1 Length |
0.650 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure |
-
Pratika 81139
