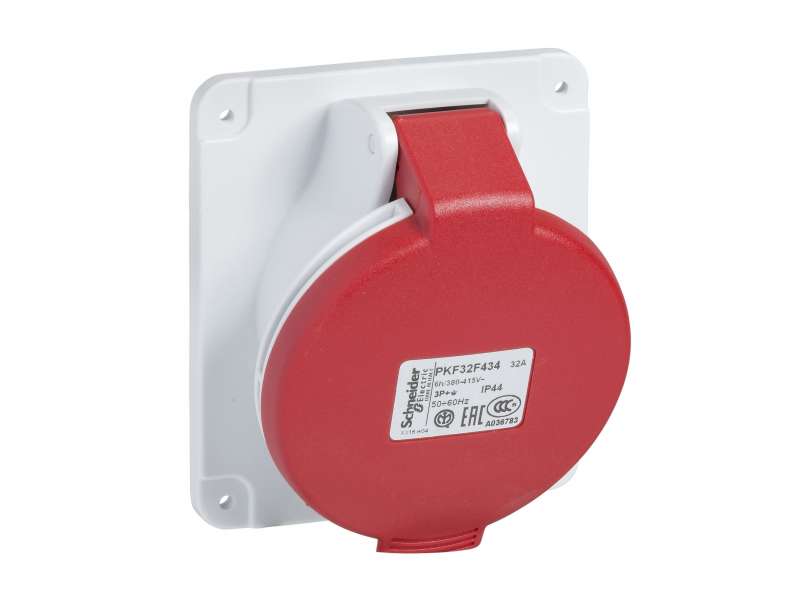

Schneider Electric PratiKa utičnica - vijčana - pod uglom-32A - 3P + N + E - 380...415 V AC - panel;PKF32F435
PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel...
VAT-exclusive price: 1.666,00 |
VAT-inclusive price: 1.999,20 |
PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Socket
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
3P + N + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Panel-mounted
|
|
|---|---|---|
| plug, socket, control station shape |
Angled
|
|
| [In] rated current |
32 A
|
|
| [Ue] rated operational voltage |
380...415 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
2.5…10 mm²
|
|
| net weight |
0.269 kg
|
|
| base dimension |
90 x 100 mm
|
|
| height |
100 mm
|
|
| width |
90 mm
|
|
| depth |
119 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Red
|
| standards |
IEC 60309-2
IEC 60309-1 |
|
|---|---|---|
| IP degree of protection |
IP44 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
242 g
|
|
| Package 1 Height |
8.9 cm
|
|
| Package 1 width |
10.1 cm
|
|
| Package 1 Length |
10.2 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
7
|
|
| Package 2 Weight |
1.908 kg
|
|
| Package 2 Height |
18 cm
|
|
| Package 2 width |
26.8 cm
|
|
| Package 2 Length |
26.8 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
14
|
