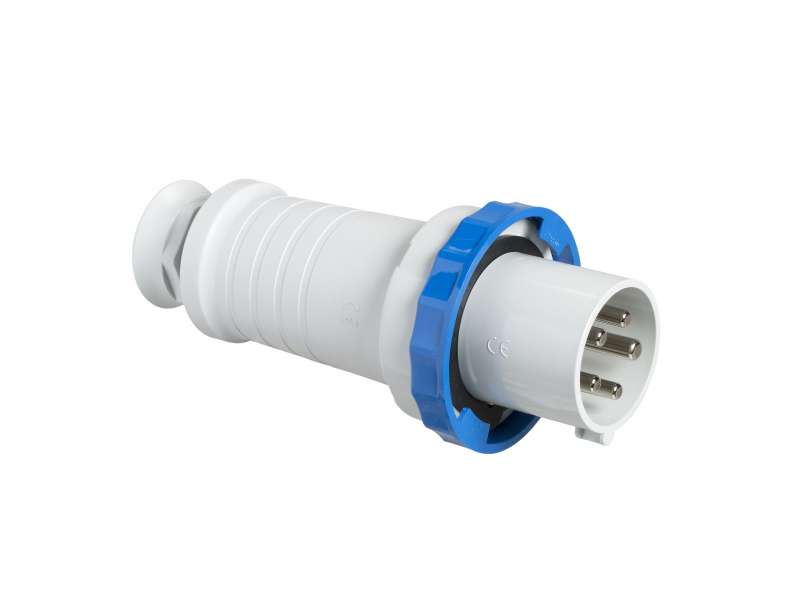

Schneider Electric PratiKa Wander utikač - ravni - 125 A - 3P + N + E - 200...250 V AC - IP67 ; 81392
PratiKa wander plug - straight - 125 A - 3P + N + E - 200...250 V AC - IP67...
VAT-exclusive price: 18.973,00 |
VAT-inclusive price: 22.767,60 |
PratiKa wander plug - straight - 125 A - 3P + N + E - 200...250 V AC - IP67
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Wander plug
|
|
| device short name |
PratiKa plug
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
3P + N + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| plug, socket, control station shape |
Straight
|
|
|---|---|---|
| [In] rated current |
125 A
|
|
| [Ue] rated operational voltage |
200...250 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
9 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Pins: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
16…70 mm²
|
|
| cable outer diameter |
26…48 mm
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 48
|
|
| net weight |
1.46 kg
|
|
| height |
325 mm
|
|
| width |
131 mm
|
|
| depth |
131 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Blue
|
| standards |
IEC 60309-1
IEC 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-11
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Package 1 Weight |
1.631 kg
|
|
|---|---|---|
| Package 1 Height |
1.290 dm
|
|
| Package 1 width |
1.290 dm
|
|
| Package 1 Length |
3.060 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | < |
-
Pratika 81392
