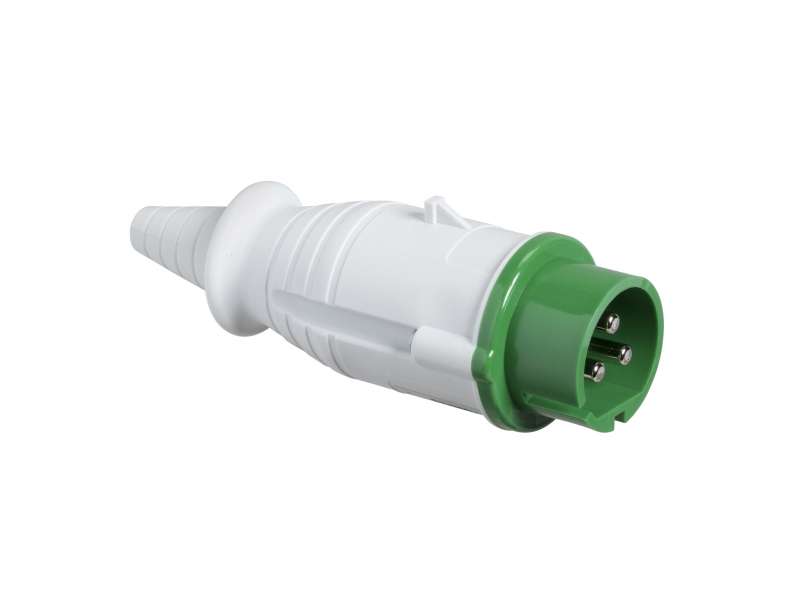

Schneider Electric PratiKa Wander utikač - ravni - 32 A - 3P - 20...25 V AC - IP44; 82320
PratiKa wander plug - straight - 32 A - 3P - 20...25 V AC - IP44...
VAT-exclusive price: 1.785,00 |
VAT-inclusive price: 2.142,00 |
PratiKa wander plug - straight - 32 A - 3P - 20...25 V AC - IP44
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Wander plug
|
|
| device short name |
PratiKa plug
|
|
| plug, socket category |
Extra-low voltage
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| plug, socket, control station shape |
Straight
|
|
|---|---|---|
| [In] rated current |
32 A
|
|
| [Ue] rated operational voltage |
40...50 V
20...25 V |
|
| network frequency |
100/200 Hz
|
|
| secondary keyway clockwise position |
4 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Pins: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
4…10 mm²
|
|
| cable outer diameter |
6…23 mm
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 21
|
|
| net weight |
0.159 kg
|
|
| height |
158 mm
|
|
| width |
57.5 mm
|
|
| depth |
57.5 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Green
|
| standards |
IEC 60309-2
IEC 60309-1 |
|
|---|---|---|
| IP degree of protection |
IP44 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-11
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
147 g
|
|
| Package 1 Height |
1.3 cm
|
|
| Package 1 width |
7.9 cm
|
|
| Package 1 Length |
18.5 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
1.601 kg
|
|
| Package 2 Height |
21 cm
|
|
| Package 2 width |
10 cm
|
|
| Package 2 Length |
28 cm
|
-
