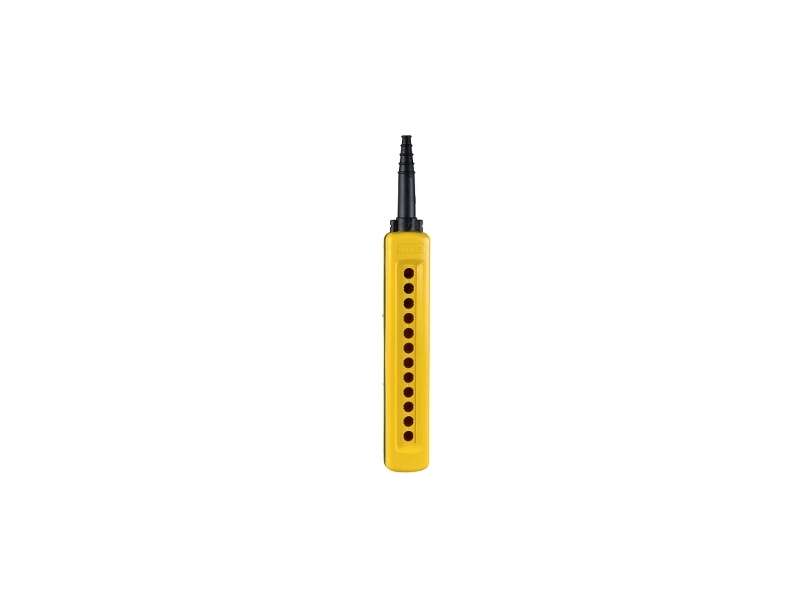

Schneider Electric Prazna upravljačka stanica XAC-A - 12 otvora u 1 koloni;XACA12
Harmony XAC, Empty pendant control station, plastic, yellow, 12 cut-outs...
VAT-exclusive price: 13.966,00 |
VAT-inclusive price: 16.759,20 |
Harmony XAC, Empty pendant control station, plastic, yellow, 12 cut-outs
| range of product | Harmony XAC |
|---|---|
| product or component type | Pendant control station |
| device short name | XACA |
| control station type | Double insulated |
|---|---|
| enclosure material | Polypropylene |
| electrical circuit type | Control circuit |
| enclosure type | Empty enclosure |
| number of cut-out | 12 cut-outs |
| control station colour | Yellow |
| cable entry | Rubber sleeve with stepped entry 8…26 mm |
| guard rail | Without |
| vertical operator cut-out centre | 30 mm |
| standards |
EN/IEC 60204-32 CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 |
| product certifications |
CCC GOST |
| protective treatment | TH |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 100 gn conforming to IEC 60068-2-27 |
| overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 50102 |
| mechanical durability | 1000000 cycles |
| net weight | 1 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.153 kg |
| Package 1 Height | 9.2 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 74.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 30 |
| Package 2 Weight | 47.59 kg |
| Package 2 Height | 73.5 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Warranty | 18 months |
|---|
