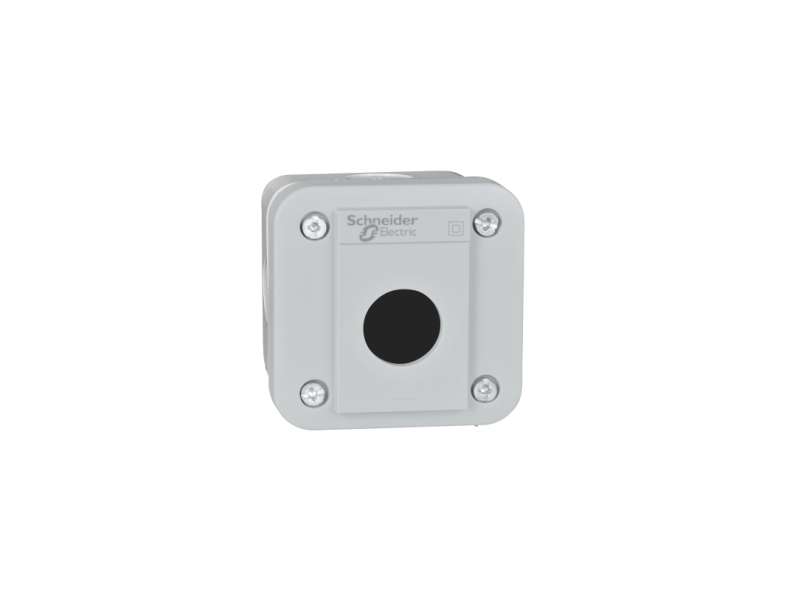

Schneider Electric Prazna upravljačka stanica XAL-E - svetlosiva baza i poklopac;XALE1
Harmony XALE, Empty control station, plastic, light grey, 1 cut-out, for XB7...
VAT-exclusive price: 1.028,00 |
VAT-inclusive price: 1.233,60 |
Harmony XALE, Empty control station, plastic, light grey, 1 cut-out, for XB7
| range of product | Harmony XALE |
|---|---|
| product or component type | Empty control station |
| device short name | XALE |
| product destination | For XB7 Ø 22 mm control and signalling units |
| number of cut-out | 1 cut-out |
| colour of base of enclosure | Light grey (RAL 7035) |
| colour of cover | Light grey (RAL 7035) |
| material | ABS (acrylonitrile butadiene-styrene) |
| cable entry |
2 knock-outs, clamping capacity: 16 mm 4 knock-outs for ISO M20 |
| sale per indivisible quantity | 5 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| assembly style | For customer assembly |
|---|---|
| net weight | 0.08 kg |
| marking | CE |
| protective treatment | TC |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…55 °C |
| electrical shock protection class | Class II conforming to IEC 60536 |
| IK degree of protection | IK05 conforming to EN 50102 |
| standards |
EN/IEC 62208 EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/IEC 60947-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 72.0 g |
| Package 1 Height | 8.2 cm |
| Package 1 width | 8.1 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 360 |
| Package 2 Weight | 44.516 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 45 |
| Package 3 Weight | 4.2 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
