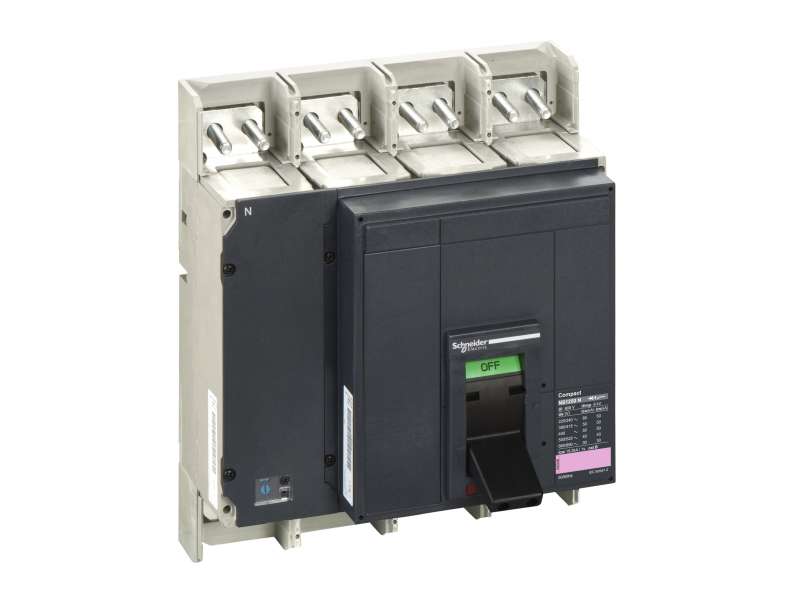

Schneider Electric Prekidač Compact NS1250N - 1250 A - 4P - izvlačivi - bez zaštitne jedinice
circuit breaker basic frame, ComPact NS 1250N, 50 kA at 415 VAC, 1250 A, withdrawable, electrically operated, without trip unit, 4 P...
VAT-exclusive price: 646.589,00 |
VAT-inclusive price: 775.906,80 |
circuit breaker basic frame, ComPact NS 1250N, 50 kA at 415 VAC, 1250 A, withdrawable, electrically operated, without trip unit, 4 P
| range | ComPact |
|---|---|
| range of product | ComPact NS630b...1600 |
| device short name | Compact NS1250N |
| product or component type | Basic frame |
| device application | Distribution |
| Number of poles | 4P |
| neutral position | Left |
| [In] rated current | 1250 A at 50 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category B |
| [Icu] rated ultimate short-circuit breaking capacity |
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | N 50 kA 415 V AC |
| control type |
Motor mechanism with external connector Motor mechanism |
| mounting mode | Drawout |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity |
30 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) 22 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) 37 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) 37 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) 37 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation) |
| [Icw] rated short-time withstand current | 19.2 kA 1 s conforming to IEC 60947-2 |
| integral instant protection | 40 kA |
| mechanical durability | 10000 cycles conforming to IEC 60947-2 |
| electrical durability |
2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 3000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 5000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| power losses | 84 W |
| mounting support | Backplate |
| connection pitch | 70 mm |
| protection type | Without protection |
| Height (H) | 327 mm |
| Width (W) | 280 mm |
| Depth (D) | 147 mm |
| standards | IEC 60947-2 |
|---|---|
| product certifications |
LCIE ASTA ASEFA |
| pollution degree | 3 conforming to IEC 60947 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 18.43 kg |
| Package 1 Height | 40 cm |
| Package 1 width | 40 cm |
| Package 1 Length | 30 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free | Yes |
| Warranty | 18 months |
|---|
-
ComPact NS 33404
