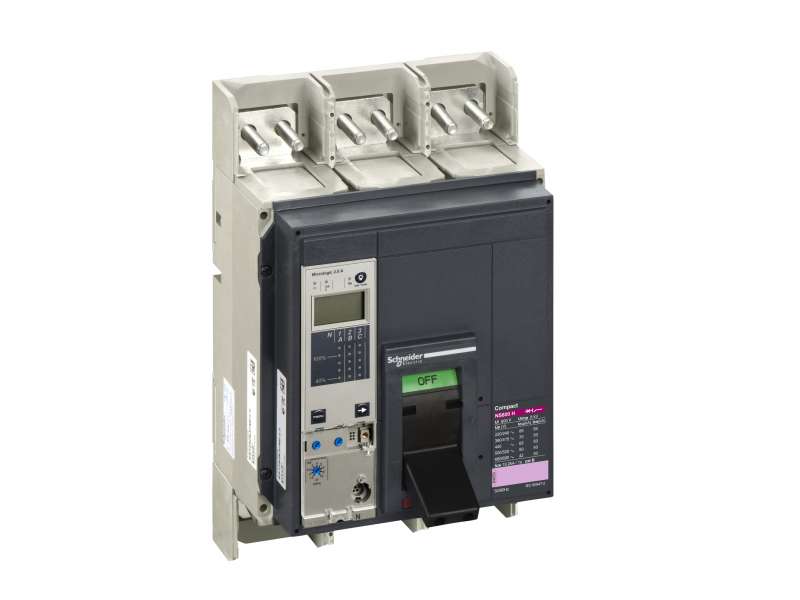

Schneider Electric Prekidač Compact NS800H - Micrologic 2.0 A - 800 A - 3P 3t ; 33238
circuit breaker ComPact NS800H, 70 kA at 415 VAC, Micrologic 2.0 A trip unit, 800 A, fixed,3 poles 3d...
VAT-exclusive price: 367.478,00 |
VAT-inclusive price: 440.973,60 |
circuit breaker ComPact NS800H, 70 kA at 415 VAC, Micrologic 2.0 A trip unit, 800 A, fixed,3 poles 3d
| range |
Compact
|
|
|---|---|---|
| product name |
Compact NS
|
|
| range of product |
NS630b...1600
|
|
| device short name |
Compact NS800H
|
|
| product or component type |
Circuit breaker
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| protected poles description |
3d
|
|
| (In) rated current up to 65 °C |
800 A at 50 °C
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
|
| utilisation category |
Category B
|
|
| [Icu] rated ultimate short-circuit breaking capacity |
42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Performance level |
H 70 kA 415 V AC
|
|
| trip unit name |
Micrologic 2.0 A
|
|
| trip unit technology |
Electronic
|
|
| trip unit protection functions |
LI
|
|
| control type |
Rotary handle
Toggle |
|
| Circuit breaker mounting mode |
Fixed
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz conforming to IEC 60947-2
|
|
|---|---|---|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947-2
|
|
| [Ics] rated service short-circuit breaking capacity |
30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Icw] rated short-time withstand current |
19.2 kA 1 s conforming to IEC 60947-2
|
|
| mechanical durability |
10000 cycles
|
|
| electrical durability |
2000 cycles at 690 V In
4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2 |
|
| power losses |
15 W
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| connection pitch |
70 mm
|
|
| protection type |
L : for overload protection (long time)
I : for instantaneous short-circuit protection |
|
| trip unit rating |
800 A at 50 °C
|
|
| Long-time pick-up adjustment type Ir (thermal protection) |
Adjustable 9 settings
|
|
| [Ir] long-time protection pick-up adjustment range |
0.4...1 x In
|
|
| Long-time protection delay adjustment type tr |
Adjustable 9 settings
|
|
| [tr] long-time protection delay adjustment range |
12.5…600 s at 1.5 x Ir
0.5…24 s at 6 x Ir 0.7…16.6 s at 7.2 x Ir |
|
| thermal memory |
20 mn
|
|
| Instantaneous protection pick-up adjustment type Ii |
Adjustable
|
|
| [Ii] instantaneous protection pick-up adjustment range |
1.5...10 x Ir
|
|
| earth-leakage protection |
Without
|
|
| zone selective interlocking ZSI |
With
|
|
| auxiliary contact composition |
1 NO/NC
|
|
| local signalling |
4 LEDs (red) for fault indication
1 LED (yellow) for overload |
|
| display type |
LCD display
|
|
| type of measurement |
Ammeter
|
|
| Width (W) |
210 mm
|
|
| Height (H) |
327 mm
|
|
| Depth (D) |
147 mm
|
|
| net weight |
14 kg
|
| standards |
EN/IEC 60947-2
|
|
|---|---|---|
| product certifications |
ASTA
ASEFA |
|
| pollution degree |
3 conforming to IEC 60947
|
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to EN 50102
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
0…95 %
|
|
| operating altitude |
0...2000 m without derating
2000 m...5000 m with derating |
| Package 1 Weight |
11.890 kg
|
|---|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
ComPact NS 33238
