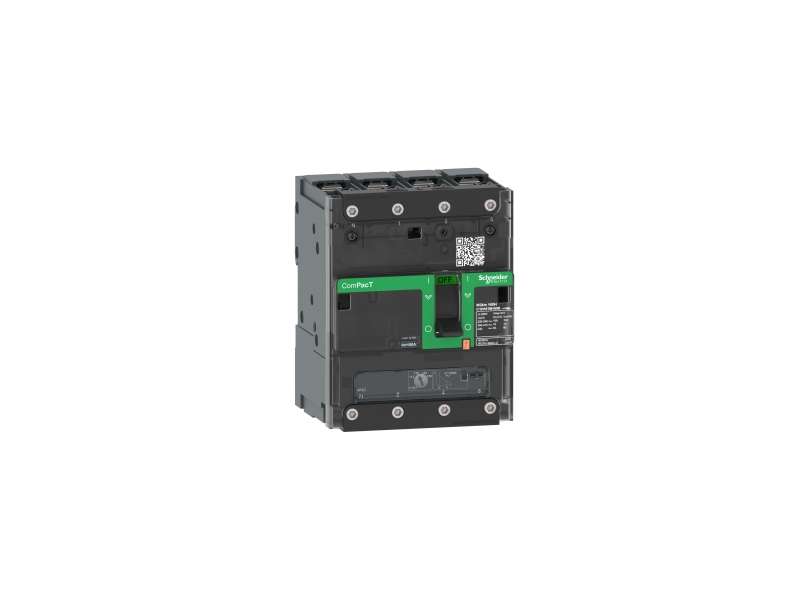

Schneider Electric Prekidač ComPacT NSXm E (16 kA na 415 VAC), 4P 4d, 50 A struja TMD zaštitna jedinica, kompresione stopice i sabirnice;C11E4TM050

Schneider Electric Prekidač ComPacT NSXm E (16 kA na 415 VAC), 4P 4d, 50 A struja TMD zaštitna jedinica, kompresione stopice i sabirnice;C11E4TM050

Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A, lugs/busbars...

Brand: Schneider Electric
Product Code: C11E4TM050B
Availability: Check availability
VAT-exclusive price: 29.257,00
VAT-inclusive price: 35.108,40

Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 50A, lugs/busbars



Main
range ComPacT new generation
product name ComPacT NSXm new generation
range of product ComPacT NSXm new generation
device short name NSXm 100E
product or component type Circuit breaker
device application Distribution
poles description 4P
protected poles description 4D
neutral position Left
[In] rated current 50 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz
network type AC
network frequency 50/60 Hz
suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Performance level E 16 kA 415 V AC
trip unit name TM-D
trip unit technology Thermal-magnetic
trip unit protection functions LI
control type Toggle
Circuit breaker mounting mode Fixed
Complementary
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ics] rated service short-circuit breaking capacity 25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability 20000 cycles
electrical durability 20000 cycles at 440 V In/2
10000 cycles at 440 V In
10000 cycles at 690 V In/2
5000 cycles at 690 V In
power dissipation per pole 4.81 W
mounting support Backplate
mounting position Horizontal and vertical
Flat on the back
upside connection Front
downside connection Front
Connection terminals Compression lug/busbar
connection pitch 35 mm with spreaders
27 mm without spreaders
9 mm pitches 12 module
trip unit rating 50 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection) Adjustable
[Ir] long-time protection pick-up adjustment range 0.7...1 x In
Long-time protection delay adjustment type tr Fixed
Neutral protection settings 1 x Ir (4D)
Instantaneous protection pick-up adjustment type Ii Fixed
[Ii] instantaneous protection pick-up adjustment range 600 A
earth-leakage protection Without
Number of slots for electrical auxiliaries 1 slot(s) for auxiliary switch OF
1 slot(s) for alarm switch SD
1 slot(s) for voltage release MN or MX
local signalling Flag (green) for presence of auxiliary contacts
Width (W) 108 mm
Height (H) 137 mm
Depth (D) 80 mm
net weight 1.42 kg
colour Grey (RAL 7016)
Environment
standards EN/IEC 60947
pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -50…85 °C
relative humidity 0…95 %
operating altitude 2000 m without derating
5000 m with derating

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.6 kg
Package 1 Height 12.0 cm
Package 1 width 13.0 cm
Package 1 Length 22.0 cm
Unit Type of Package 2 P12
Number of Units in Package 2 144
Package 2 Weight 254.49 kg
Package 2 Height 150.0 cm
Package 2 width 80.0 cm
Package 2 Length 120.0 cm
Unit Type of Package 3 S03
Number of Units in Package 3 6
Package 3 Weight 10.19 kg
Package 3 Height 30.0 cm
Package 3 width 30.0 cm
Package 3 Length 40.0 cm
