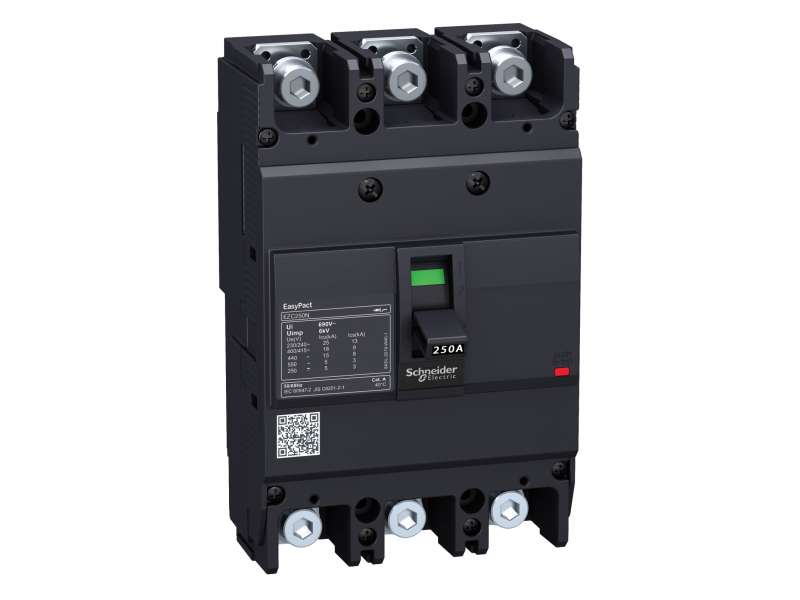

Schneider Electric Prekidač Easypact EZC250F - TMD - 125 A - 3P 3d;EZC250F3125
Circuit breaker Easypact EZC250F - TMD - 125 A - 3 poles 3d...
VAT-exclusive price: 13.566,00 |
VAT-inclusive price: 16.279,20 |
Circuit breaker Easypact EZC250F - TMD - 125 A - 3 poles 3d
| range of product |
EasyPact
|
|
|---|---|---|
| product or component type |
Circuit breaker
|
|
| device short name |
Easypact EZC250F
|
|
| circuit breaker name |
Easypact EZC250F
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| protected poles description |
3t
|
|
| network type |
DC
AC |
|
| network frequency |
50/60 Hz
|
|
| [In] rated current |
250 A at 40 °C
|
|
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-2
|
|
| [Ue] rated operational voltage |
550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC conforming to IEC 60947-2 |
|
| breaking capacity code |
F
|
|
| breaking capacity |
10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service breaking capacity |
9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 125 V DC conforming to IEC 60947-2 2.5 kA at 250 V DC conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 9 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| suitability for isolation |
Yes conforming to IEC 60947-2
|
|
| utilisation category |
Category A
|
|
| trip unit name |
TM-D
|
|
| trip unit technology |
Thermal-magnetic
|
|
| trip unit rating |
125 A at 50 °C
|
|
| protection type |
Overload protection
Short-circuit protection |
|
| pollution degree |
3 conforming to IEC 60664-1
3 conforming to IEC 947-1 |
| control type |
Toggle
|
|
|---|---|---|
| mounting mode |
Fixed
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| mechanical durability |
10000 cycles
|
|
| electrical durability |
Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| connection pitch |
35 mm
|
|
| local signalling |
Positive contact indication
|
|
| neutral protection setting |
Without protection
|
|
| earth-leakage protection |
Without
|
|
| height |
165 mm
|
|
| width |
105 mm
|
|
| depth |
60 mm
|
| standards |
EN/IEC 60947-2
GB/T 14048.2 EN/IEC 60947-1 |
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-35…85 °C
|
| Package 1 Weight |
1.300 kg
|
|---|
-
EasyPact EZC EZC250F3125
