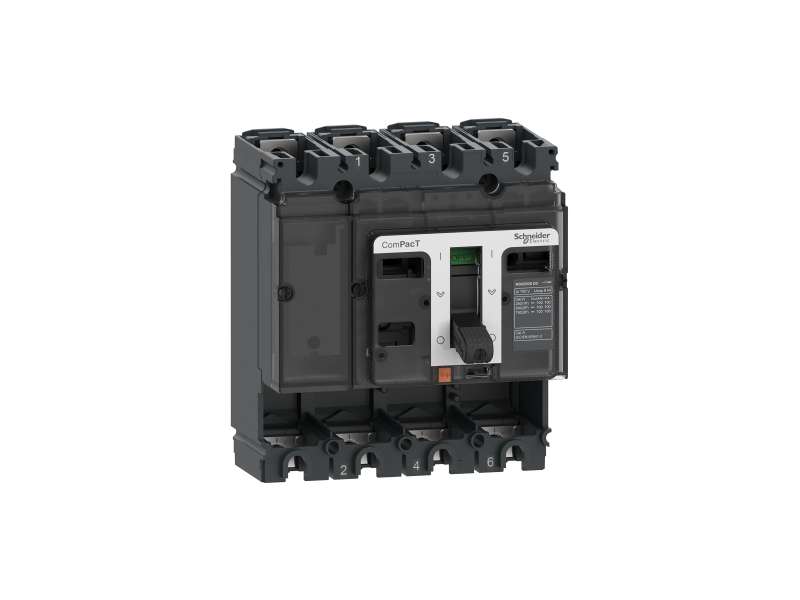

Circuit breaker basic frame, ComPacT NSX250F DC, 36kA/750VDC, 4 poles, 250A frame rating, without trip unit...
VAT-exclusive price: 54.367,00 |
VAT-inclusive price: 65.240,40 |
Circuit breaker basic frame, ComPacT NSX250F DC, 36kA/750VDC, 4 poles, 250A frame rating, without trip unit
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSX DC new generation |
| device short name | NSX250F DC |
| product or component type | Basic frame |
| device application | Distribution |
| poles description | 4P |
| neutral position | Left |
| [In] rated current | 250 A at 40 °C |
| [Ue] rated operational voltage | 750 V DC conforming to IEC 60947-2 |
| network type | DC |
| suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity |
36 kA Icu at 250 V DC 1P conforming to IEC 60947-2 36 kA Icu at 24...125 V DC 1P conforming to IEC 60947-2 36 kA Icu at 500 V DC 2P conforming to IEC 60947-2 36 kA Icu at 750 V DC 3P conforming to IEC 60947-2 |
| Performance level | F 36 kA 750 V DC |
| control type | Toggle |
| mounting mode | Fixed |
| [Ui] rated insulation voltage | 750 V DC conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity |
36 kA at 250 V DC conforming to IEC 60947-2 (1P) 36 kA at 24...125 V DC conforming to IEC 60947-2 (1P) 36 kA at 500 V DC conforming to IEC 60947-2 (2P) 36 kA at 750 V DC conforming to IEC 60947-2 (3P) |
| maximum breaking time | 10 ms |
| mechanical durability | 10000 cycles conforming to IEC 60947-2 |
| electrical durability |
10000 cycles 250 V DC In/2 conforming to IEC 60947-2 10000 cycles 500 V DC In/2 conforming to IEC 60947-2 10000 cycles 750 V DC In/2 conforming to IEC 60947-2 5000 cycles 250 V DC In conforming to IEC 60947-2 5000 cycles 500 V DC In conforming to IEC 60947-2 5000 cycles 750 V DC In conforming to IEC 60947-2 |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| connection pitch | 35 mm |
| protection type | Without protection |
| Width (W) | 140 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| standards | IEC 60947-2 |
|---|---|
| product certifications |
ASTA ASEFA KEMA LCIE |
| pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.138 kg |
| Package 1 Height | 14.0 cm |
| Package 1 width | 15.0 cm |
| Package 1 Length | 19.0 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 2.138 kg |
| Package 2 Height | 14.0 cm |
| Package 2 width | 14.0 cm |
| Package 2 Length | 18.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 4 |
| Package 3 Weight | 8.993 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
