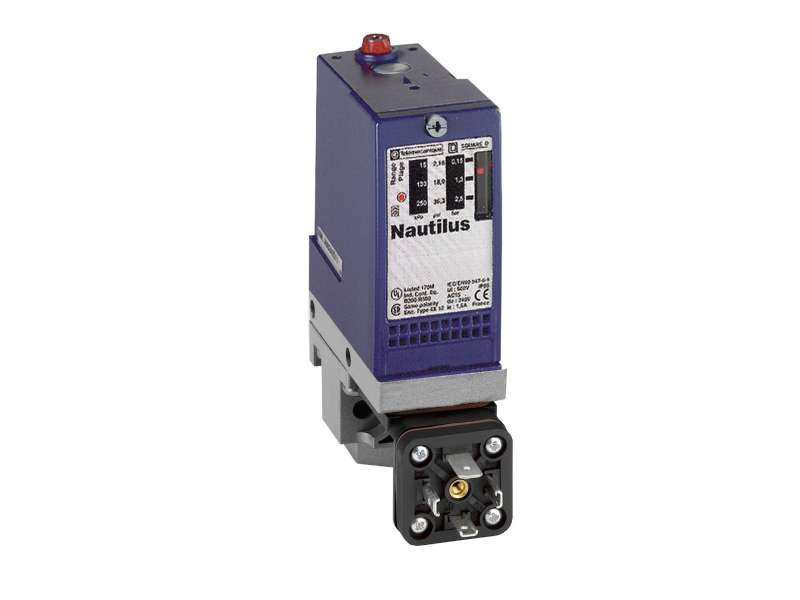

Schneider Electric Presostat XMLA 300 bar - detekcija jedne granične vrednosti - 1 C/O;XMLA300D2C11
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 300 bar, fixed scale 1 threshold, 1 C/O...
VAT-exclusive price: 17.892,00 |
VAT-inclusive price: 21.470,40 |
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 300 bar, fixed scale 1 threshold, 1 C/O
| range of product |
OsiSense XM
|
|
|---|---|---|
| product or component type |
Electromechanical pressure sensor
|
|
| pressure sensor type |
Electromechanical pressure sensor
|
|
| device short name |
XMLA
|
|
| pressure sensor size |
300 bar
|
|
| controlled fluid |
Hydraulic oil (0…160 °C)
|
|
| fluid connection type |
G 1/4 (female) conforming to ISO 228
|
|
| electrical connection |
1 male connector EN 175301-803-A (ex DIN43650), 4 pins
|
|
| contacts type and composition |
1 C/O
|
|
| product specific application |
-
|
|
| pressure switch type of operation |
Detection of 1 single threshold
|
|
| electrical circuit type |
Control circuit
|
|
| scale type |
Fixed differential
|
|
| local display |
With
|
|
| adjustable range of switching point on rising pressure |
20…300 bar
|
|
| adjustable range of switching point on falling pressure |
3.5…265 bar
|
|
| maximum permissible accidental pressure |
675 bar
|
|
| destruction pressure |
1350 bar
|
|
| pressure actuator |
Piston
|
|
| materials in contact with fluid |
Brass
Steel FPM, FKM PTFE |
|
| enclosure material |
Zinc alloy
|
|
| [In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| natural differential at low setting |
16.5 bar (+/- 3 bar)
|
|
|---|---|---|
| natural differential at high setting |
35 bar (+/- 6 bar)
|
|
| maximum permissible pressure - per cycle |
375 bar
|
|
| terminal block type |
4 terminals
|
|
| maximum operating rate |
60 cyc/mn
|
|
| repeat accuracy |
2 %
|
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
|
| [Uimp] rated impulse withstand voltage |
EN/IEC 60947-1 6 kV
|
|
| auxiliary contacts operation |
Snap action
|
|
| contacts material |
Silver contacts
|
|
| maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A |
|
| short-circuit protection |
10 A cartridge fuse, type gG (gl)
|
|
| mechanical durability |
3000000 cycles
|
|
| setting |
External
|
|
| height |
113 mm
|
|
| depth |
75 mm
|
|
| width |
35 mm
|
|
| net weight |
0.78 kg
|
| standards |
UL 508
EN/IEC 60947-5-1 CSA C22.2 No 14 CE |
|
|---|---|---|
| product certifications |
BV
LROS (Lloyds register of shipping) EAC CSA CCC UL |
|
| protective treatment |
TC standard version
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| operating position |
Any position
|
|
| vibration resistance |
4 gn conforming to IEC 60068-2-6 (f = 30…500 Hz)
|
|
| shock resistance |
50 gn conforming to IEC 60068-2-27
|
|
| electrical shock protection class |
Class I conforming to IEC 1140
|
-
OsiSense XM XMLA300D2C11
