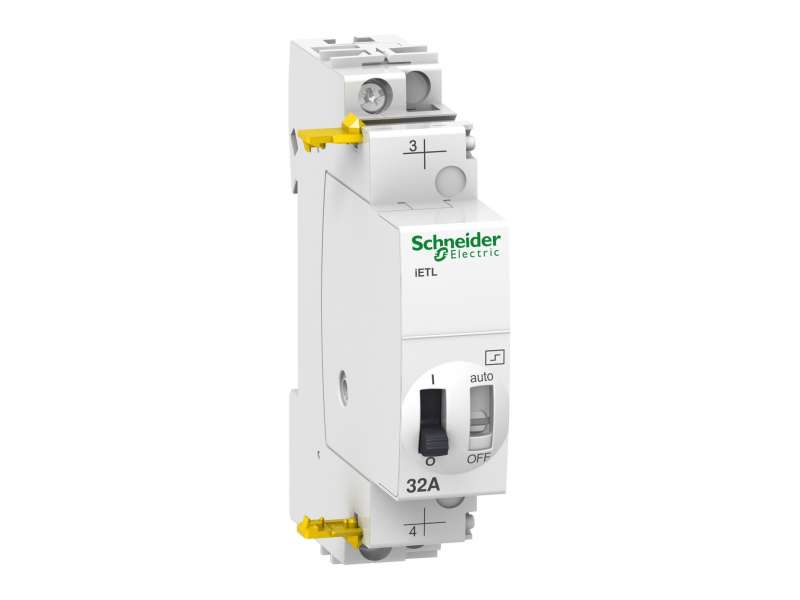

Schneider Electric Proširenje ETL iTL 32 - 1P -1NO - 32A - kalem 110 VDC - 230..240VAC 50/60Hz; A9C32836
extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz...
VAT-exclusive price: 2.106,00 |
VAT-inclusive price: 2.527,20 |
extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz
| range of product | Acti9 |
|---|---|
| Product or component type | Extension for impulse relay |
| Device short name | IETL iTL 32 |
| Relay application | Remote control |
| Poles description | 1P |
| Pole contact composition | 1 NO |
| [In] rated current | 32 A |
| Network type | AC |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Control type |
Toggle Remote control |
| Control signal type | Impulse |
| Switching frequency | 5 switching operations/minute |
| Impulse duration | 50 ms |
| Remote control type | Illuminated push-button 3 mA |
| Local signalling | ON/OFF indication |
| [Uc] control circuit voltage |
230...240 V AC 50/60 Hz 110 V DC |
| Supply inrush power | 19 VA |
| Mounting mode | Fixed, on right side of TL |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| Height | 60 mm |
| Width | 18 mm |
| Depth | 84 mm |
| Colour | White |
| Electrical durability |
AC-21: 50000 cycles AC-22: 20000 cycles |
| Connections - terminals | Tunnel type terminals - <= 10 mm² |
| Range compatibility | Acti 9 (Acti9 iTL) iTL |
| Product compatibility | ITL 32A |
| Standards |
EN 669-1 EN 669-2-2 |
|---|---|
| noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Pollution degree | 3 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.2 cm |
| Package 1 Width | 8.4 cm |
| Package 1 Length | 9.4 cm |
| Package 1 Weight | 120 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 9 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 26.5 cm |
| Package 2 Weight | 1.021 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 9.683 kg |
| Warranty | 18 months |
|---|
-
Acti 9 iTL A9C32836
