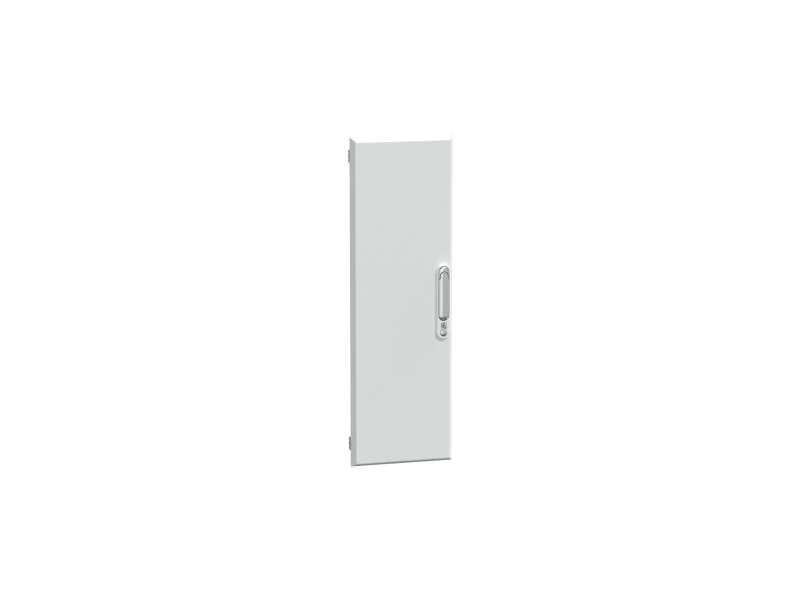

Schneider Electric Providna vrata kablovskog polja Š300 21M PRISMA G IP30; LVS08197
TRANSP.DUCT DOOR W300 21M PRISMA G IP30...
VAT-exclusive price: 16.201,00 |
VAT-inclusive price: 19.441,20 |
TRANSP.DUCT DOOR W300 21M PRISMA G IP30
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) duct |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge |
| type of door | Transparent |
| IP degree of protection |
IP43 with door, canopy and IP43 gasket IP30 without door IP40 with door IP41 with door and canopy |
| installation description | Wall-mounted duct - width 300 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 2 |
| door opening angle | 130 ° |
| Number of vertical modules [50 mm] | 21 |
| Enclosure material |
Handle: polyamide Glass Cover frame: treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1080 mm |
| Width | 300 mm |
| Depth | 36 mm |
| Product weight | 4.3 kg |
| Material | Glass |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-1 IEC 61439-2 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 34.0 cm |
| Package 1 Length | 114.5 cm |
| Package 1 Weight | 5.698 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 98.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 148.0 kg |
