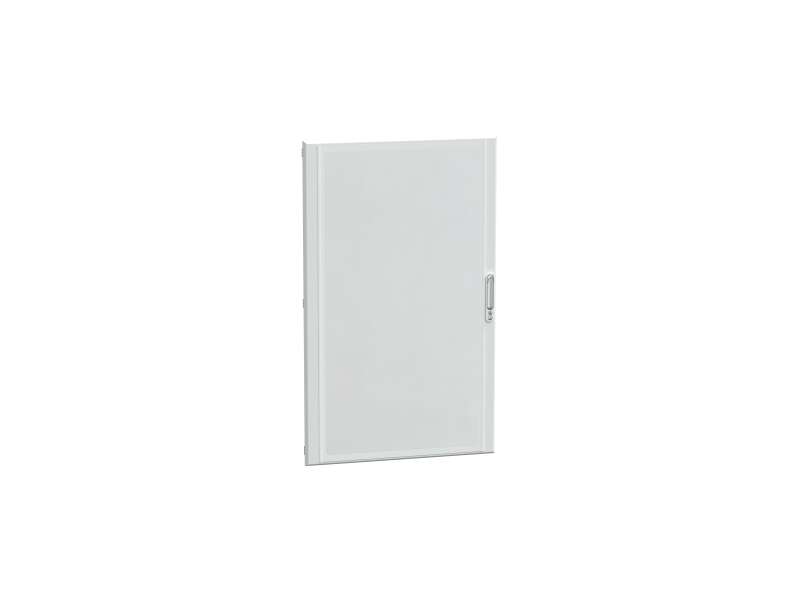

Schneider Electric Providna vrata Š850 30M PRISMA G IP30/4X; LVS08263
TRANSP. DOOR W850 30M PRISMA G IP30/4X...
VAT-exclusive price: 36.451,00 |
VAT-inclusive price: 43.741,20 |
TRANSP. DOOR W850 30M PRISMA G IP30/4X
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 3 hinge |
| type of door | Transparent |
| IP degree of protection |
IP43 with door, canopy and IP43 gasket IP30 without door IP40 with door IP41 with door and canopy |
| installation description | Floor-standing enclosure - width 850 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 3 |
| door opening angle | 130 ° |
| Number of vertical modules [50 mm] | 30 |
| Enclosure material |
Glass Treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1530 mm |
| Width | 850 mm |
| Depth | 40 mm |
| Net weight | 15 kg |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-2 IEC 61439-1 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 88.5 cm |
| Package 1 Length | 160.0 cm |
| Package 1 Weight | 16.08 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 97 cm |
| Package 2 Width | 120 cm |
| Package 2 Length | 202 cm |
| Package 2 Weight | 215 kg |
| Package 3 Height | 97 cm |
