Schneider Electric Rastavljač Compact INS250 - 100 A - 4P;31101

switch disconnector, Compact INS250-100 , 100 A, standard version with black rotary handle, 4 poles...

Brand: Schneider Electric
Product Code: 31101
Availability: Check availability

VAT-exclusive price: 26.040,00

VAT-inclusive price: 31.248,00

Qnt:

Description
Specification

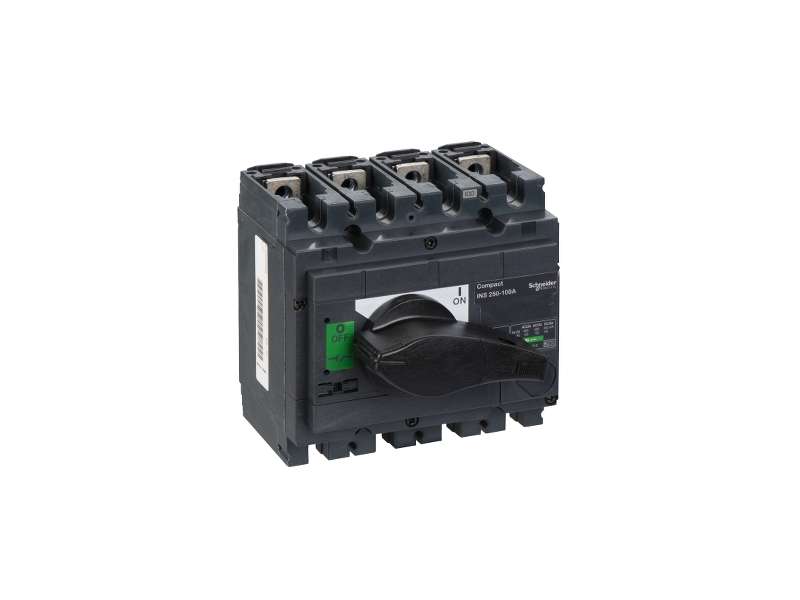

switch disconnector, Compact INS250-100 , 100 A, standard version with black rotary handle, 4 poles

Osnovne informacije
Grupa proizvoda	Compact
Tip proizvoda ili komponente	Rastavljač
Ime proizvoda	Compact INS
Broj polova	4P
Tip mreže	DC AC
Mrežna frekvencija	50/60 Hz
[ie] nazivna struja	AC-22A: 100 A AC 50/60 Hz 220/240 V AC-22A: 100 A AC 50/60 Hz 380/415 V AC-22A: 100 A AC 50/60 Hz 440/480 V AC-22A: 100 A AC 50/60 Hz 480 V NEMA AC-22A: 100 A AC 50/60 Hz 500/525 V AC-22A: 100 A AC 50/60 Hz 660/690 V AC-23A: 100 A AC 50/60 Hz 220/240 V AC-23A: 100 A AC 50/60 Hz 380/415 V AC-23A: 100 A AC 50/60 Hz 440/480 V AC-23A: 100 A AC 50/60 Hz 480 V NEMA AC-23A: 100 A AC 50/60 Hz 500/525 V AC-23A: 100 A AC 50/60 Hz 660/690 V DC-22A: 100 A DC 125 V 2 pola serijski DC-22A: 100 A DC 250 V 4 pola serijski DC-23A: 100 A DC 125 V 2 pola serijski DC-23A: 100 A DC 250 V 4 pola serijski
[ui] nazivni napon izolacije	750 V AC 50/60 Hz
[ith] dozvoljena termička struja u vazduhu	100 A pri 60 °C
[icm] nazivna kratkospojna moć uključenja	30 kA sam rastavljač 690 V AC pri 50/60 Hz 330 kA sa zaštitnim prekidačem 690 V AC pri 50/60 Hz
[ue] nazivni napon	250 V DC 690 V AC 50/60 Hz
Pogodno za izolaciju	Da
Indikator pozicije kontakta	Da
Vidljivo prekidanje	Ne
Stepen zaprljanosti	3

Dopunske informacije
Tip upravljanja	Direktno prednjom zakretnom ručicom
Boja drške	Crna
Način montiranja	Fiksno
Nosači za montažu	Ploča Šina
Gornji priključak	Prednja
Donji priključak	Prednji
Maksimalna snaga	AC-23: 22 kW pri 220/240 V AC 50/60 Hz AC-23: 22 kW pri 230 V AC 50/60 Hz (NEMA) AC-23: 45 kW pri 380/415 V AC 50/60 Hz AC-23: 55 kW pri 440 V AC 50/60 Hz AC-23: 55 kW pri 480 V AC 50/60 Hz (NEMA) AC-23: 55 kW pri 500/525 V AC 50/60 Hz AC-23: 55 kW pri 660/690 V AC 50/60 Hz
Nazivni ciklus	Neprekidno
[icw] kratkotrajna podnosiva struja kratkog spoja	1,8 kA tokom 30 s u skladu sa IEC 60947-3 2,2 kA tokom 20 s u skladu sa IEC 60947-3 4,9 kA tokom 3 s u skladu sa IEC 60947-3 8,5 kA tokom 1 s u skladu sa IEC 60947-3
Mehanička trajnost	15000 ciklusa
Električna trajnost	AC-22A: 1500 ciklusa 440 V AC 50/60 Hz AC-22A: 1500 ciklusa 500 V AC 50/60 Hz AC-22A: 1500 ciklusa 690 V AC 50/60 Hz AC-23A: 1500 ciklusa 440 V AC 50/60 Hz AC-23A: 1500 ciklusa 500 V AC 50/60 Hz AC-23A: 1500 ciklusa 690 V AC 50/60 Hz DC-22A: 1500 ciklusa 250 V DC 4 pola serijski DC-23A: 1500 ciklusa 250 V DC 4 pola serijski
Povezivanje	35 mm
Visina	136 mm
Širina	140 mm
Dubina	96 mm
Masa proizvoda	2,2 kg

Okruženje
Standardi	IEC 60947-1 IEC 60947-3
Sertifikacija proizvoda	CCC KEMA-KEUR
Ip stepen zaštite	IP40 u skladu sa IEC 60529
Ik stepen zaštite	IK07 u skladu sa EN 50102
Temperatura okoline za rad uređaja	-25…70 °C
Temperatura okoline za skladištenje	-50…85 °C

Pakovanje
Tip jedinice pakovanja 1	PCE
Broj jedinica u pakovanju 1	1
Pakovanje 1 težina	2,422 kg
Pakovanje 1 visina	14,0 cm
Pakovanje 1 širina	16,0 cm
Pakovanje 1 dužina	17,1 cm
Tip jedinice pakovanja 2	S04
Broj jedinica u pakovanju 2	9
Pakovanje 2 težina	22,564 kg
Pakovanje 2 visina	30,0 cm
Pakovanje 2 širina	40,0 cm
Pakovanje 2 visina	60,0 cm

Ugovorna garancija
Garancija	18 months

Main
range	ComPact
product or component type	Switch disconnector
product name	Compact INS
poles description	4P
network type	DC AC
network frequency	50/60 Hz
[Ie] rated operational current	AC-22A: 100 A AC 50/60 Hz 220/240 V AC-22A: 100 A AC 50/60 Hz 380/415 V AC-22A: 100 A AC 50/60 Hz 440/480 V AC-22A: 100 A AC 50/60 Hz 480 V NEMA AC-22A: 100 A AC 50/60 Hz 500/525 V AC-22A: 100 A AC 50/60 Hz 660/690 V AC-23A: 100 A AC 50/60 Hz 220/240 V AC-23A: 100 A AC 50/60 Hz 380/415 V AC-23A: 100 A AC 50/60 Hz 440/480 V AC-23A: 100 A AC 50/60 Hz 480 V NEMA AC-23A: 100 A AC 50/60 Hz 500/525 V AC-23A: 100 A AC 50/60 Hz 660/690 V DC-22A: 100 A DC 125 V 2 poles in series DC-22A: 100 A DC 250 V 4 poles in series DC-23A: 100 A DC 125 V 2 poles in series DC-23A: 100 A DC 250 V 4 poles in series
[Ui] rated insulation voltage	750 V AC 50/60 Hz
[Ith] conventional free air thermal current	100 A at 60 °C
[Icm] rated short-circuit making capacity	30 kA switch-disconnector alone 690 V AC at 50/60 Hz 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
[Ue] rated operational voltage	250 V DC 690 V AC 50/60 Hz
suitability for isolation	Yes
contact position indicator	Yes
visible break	No
pollution degree	3

Complementary
control type	Direct front rotary handle
handle colour	Black
mounting mode	Fixed
mounting support	Plate Rail
upside connection	Front
downside connection	Front
maximum power	AC-23: 22 kW at 220/240 V AC 50/60 Hz AC-23: 22 kW at 230 V AC 50/60 Hz (NEMA) AC-23: 45 kW at 380/415 V AC 50/60 Hz AC-23: 55 kW at 440 V AC 50/60 Hz AC-23: 55 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 55 kW at 500/525 V AC 50/60 Hz AC-23: 55 kW at 660/690 V AC 50/60 Hz
rated duty	Uninterrupted
[Icw] rated short-time withstand current	1.8 kA during 30 s conforming to IEC 60947-3 2.2 kA during 20 s conforming to IEC 60947-3 4.9 kA during 3 s conforming to IEC 60947-3 8.5 kA during 1 s conforming to IEC 60947-3
mechanical durability	15000 cycles
electrical durability	AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-22A: 1500 cycles 250 V DC 4 poles in series DC-23A: 1500 cycles 250 V DC 4 poles in series
connection pitch	35 mm
height	136 mm
width	140 mm
depth	96 mm
net weight	2.2 kg
