Schneider Electric Rastavljač Compact INS630 - 630 A - 3P;31114

switch disconnector, Compact INS630 , 630 A, standard version with black rotary handle, 3 poles...

Brand: Schneider Electric
Product Code: 31114
Availability: Check availability

VAT-exclusive price: 61.798,00

VAT-inclusive price: 74.157,60

Qnt:

Description
Specification

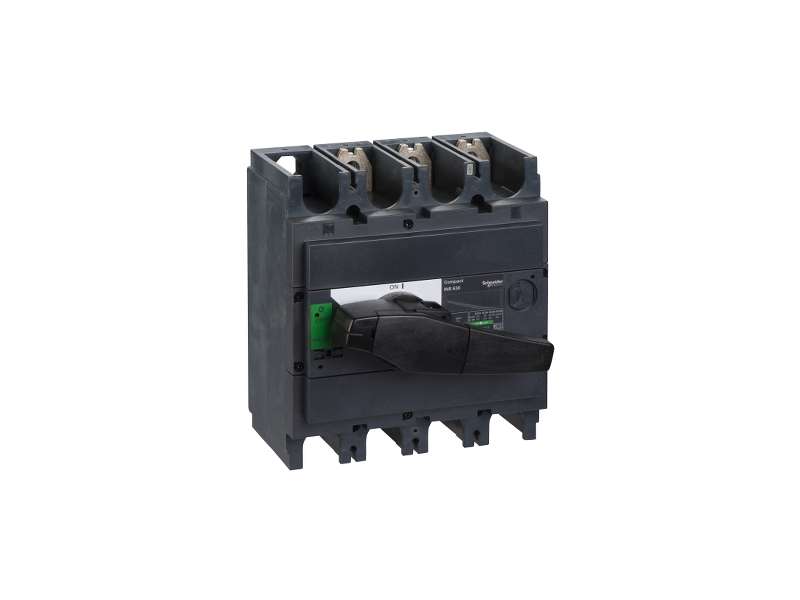

switch disconnector, Compact INS630 , 630 A, standard version with black rotary handle, 3 poles

Main
range	ComPact
product or component type	Switch disconnector
product name	Compact INS
poles description	3P
network type	AC DC
network frequency	50/60 Hz
[Ie] rated operational current	AC-22A: 630 A AC 50/60 Hz 220/240 V AC-22A: 630 A AC 50/60 Hz 380/415 V AC-22A: 630 A AC 50/60 Hz 440/480 V AC-22A: 630 A AC 50/60 Hz 480 V NEMA AC-22A: 630 A AC 50/60 Hz 500/525 V AC-22A: 630 A AC 50/60 Hz 660/690 V AC-23A: 630 A AC 50/60 Hz 220/240 V AC-23A: 630 A AC 50/60 Hz 380/415 V AC-23A: 630 A AC 50/60 Hz 440/480 V AC-23A: 630 A AC 50/60 Hz 480 V NEMA AC-23A: 630 A AC 50/60 Hz 500/525 V AC-23A: 630 A AC 50/60 Hz 660/690 V DC-22A: 550 A DC 125 V 2 poles in series DC-23A: 550 A DC 125 V 2 poles in series DC-23B: 630 A DC 125 V 2 poles in series
[Ui] rated insulation voltage	750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV 8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current	630 A at 60 °C
[Icm] rated short-circuit making capacity	330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz 50 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ue] rated operational voltage	250 V DC 690 V AC 50/60 Hz
suitability for isolation	Yes
contact position indicator	Yes
visible break	No
pollution degree	3

Complementary
control type	Direct front rotary handle
handle colour	Black
mounting mode	Fixed
mounting support	Rail Plate
upside connection	Front
downside connection	Front
maximum power	AC-23: 200 kW at 220/240 V AC 50/60 Hz AC-23: 200 kW at 230 V AC 50/60 Hz (NEMA) AC-23: 315 kW at 380/415 V AC 50/60 Hz AC-23: 375 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 400 kW at 440 V AC 50/60 Hz AC-23: 400 kW at 500/525 V AC 50/60 Hz AC-23: 560 kW at 660/690 V AC 50/60 Hz
rated duty	Uninterrupted
[Icw] rated short-time withstand current	11.5 kA during 3 s conforming to IEC 60947-3 20 kA during 1 s conforming to IEC 60947-3 4 kA during 30 s conforming to IEC 60947-3 4.9 kA during 20 s conforming to IEC 60947-3
mechanical durability	10000 cycles
electrical durability	AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-23A: 1000 cycles 125 V DC DC-23B: 200 cycles 125 V DC
connection pitch	45 mm
height	205 mm
width	185 mm
depth	130 mm
net weight	4.6 kg

Environment
standards	IEC 60947-3 IEC 60947-1
product certifications	CCC KEMA-KEUR
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	4.988 kg
Package 1 Height	19.2 cm
Package 1 width	19.2 cm
Package 1 Length	22.4 cm
Unit Type of Package 2	P12
Number of Units in Package 2	16
Package 2 Weight	91.984 kg
Package 2 Height	50 cm
Package 2 width	80 cm
Package 2 Length	120 cm
Unit Type of Package 3	S04
Number of Units in Package 3	4
Package 3 Weight	20.718 kg
Package 3 Height	30 cm
Package 3 width	40 cm
Package 3 Length	60 cm
