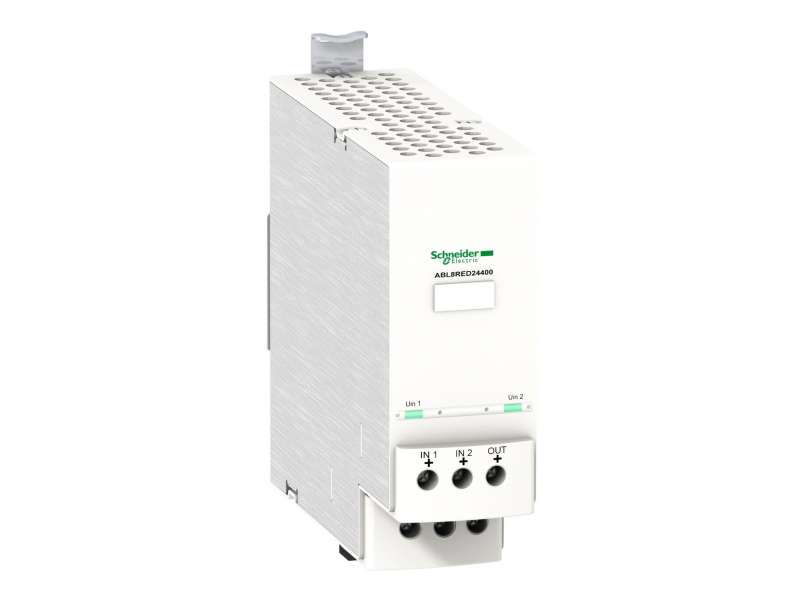

Name: Schneider Electric Redundantni modul - 40A - za regulisano napajanje SMPS;ABL8RED24400
Brand: Schneider Electric
SKU: ABL8RED24400
Price: 22142.40 RSD
Availability: OutOfStock

Schneider Electric Redundantni modul - 40A - za regulisano napajanje SMPS;ABL8RED24400

Redundancy module - 40A - for regulated SMPS...

Brand: Schneider Electric
Product Code: ABL8RED24400
Availability: Check availability

VAT-exclusive price: 18.452,00

VAT-inclusive price: 22.142,40

Qnt:

Redundancy module - 40A - for regulated SMPS

Main
range of product	Phaseo
product or component type	Redundancy module
input voltage	24...28.8 V DC
output voltage	(Uin-0.2) V DC
maximum output current	40 A

Complementary
input voltage limits	22...30 V
input current	20 A
number of output channels	1
output protection type	Against overload, protection technology: external protection by power supply Against short-circuits, protection technology: external protection by power supply
connections - terminals	For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14
fixing mode	By clips on 35 mm symmetrical DIN rail, operating position: horizontal By clips on 35 mm symmetrical DIN rail, operating position: vertical
output coupling	Parallel
operating altitude	2000 m
marking	CE
name of test	Electrostatic discharges conforming to EN/IEC 61000-4-2 Emission conforming to EN 61000-6-3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to EN/IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B Emission conforming to EN 50081-1
local signalling	1 LED per input (green) for power supply status 1 relay for power supply status
net weight	0.7 kg

Environment
product certifications	EAC RCM
standards	CSA C22.2 No 60950-1 UL 508
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C
environmental characteristic	EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	500 V between input and ground 500 V between output and ground
overvoltage category	Class II conforming to VDE 0106-1
relative humidity	0…90 % during operation 0…95 % during storage
MTBF reliability	2488391 H at 24 V DC with UTE C80-810 calculation method
vibration resistance	2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2 3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2

Packing Units
Package 3 Weight
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	644 g
Package 1 Height	7 cm
Package 1 width	16.8 cm
Package 1 Length	16.6 cm
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Weight	6.881 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
Unit Type of Package 3	P06
Number of Units in Package 3	80
