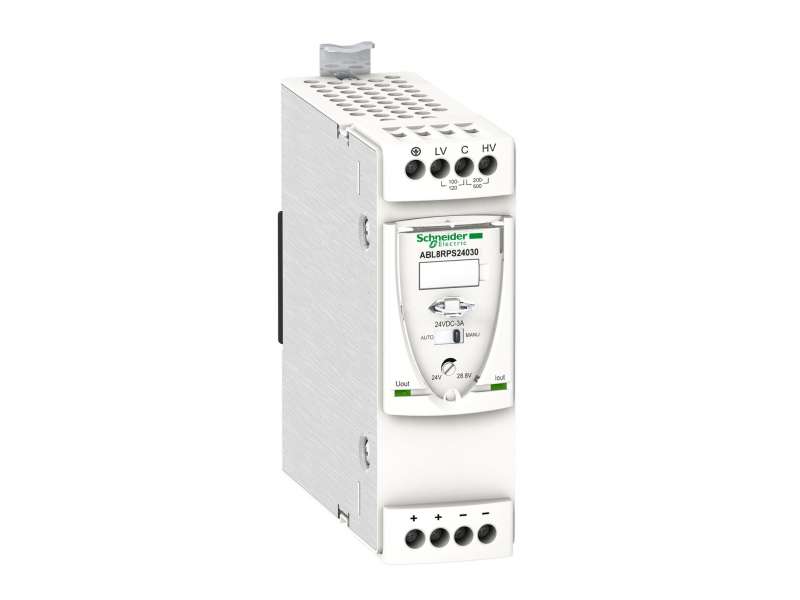

Schneider Electric Regulisano napajanje SMPS - monofazno ili dvofazno - 100..500 V - 24 V - 3 A ; ABL8RPS24030
Regulated Switch Power Supply, 1 or 2-phase, 100..500V, 24V, 3 A...
VAT-exclusive price: 25.811,00 |
VAT-inclusive price: 30.973,20 |
Regulated Switch Power Supply, 1 or 2-phase, 100..500V, 24V, 3 A
| range of product |
Modicon Power Supply
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| Nominal input voltage |
100...120 V AC single phase, terminal(s): N-L1
200...500 V AC phase to phase, terminal(s): L1-L2 |
|
| input voltage limits |
170...550 V AC
85...132 V AC |
|
| rated power in W |
72 W
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
3 A
|
|
| permissible temporary current boost |
1.5 x In (for 4 s)
|
|
| anti-harmonic filter |
Low frequency harmonic currents
|
| inrush current |
30 A
|
|
|---|---|---|
| power factor |
0.51 at 240 V AC
0.59 at 120 V AC |
|
| efficiency |
87 %
|
|
| Output voltage adjustment |
24...28.8 V adjustable
|
|
| power dissipation in W |
7.8 W
|
|
| provided equipment |
Power factor correction filter conforming to IEC 61000-3-2
|
|
| output protection type |
Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30...32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
|
| connections - terminals |
Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection Screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
|
| status LED |
1 LED (green and red)output voltage:
1 LED (green, red and orange)output current: |
|
| depth |
125 mm
|
|
| height |
125 mm
|
|
| width |
45 mm
|
|
| net weight |
0.3 kg
|
|
| output coupling |
Parallel
Series |
|
| marking |
CE
|
|
| mounting support |
35 x 15 mm symmetrical DIN rail
35 x 7.5 mm symmetrical DIN rail |
|
| operating position |
Vertical
|
| standards |
CSA C22.2 No 60950-1
UL 508 |
|
|---|---|---|
| product certifications |
CCSAus
EAC UL RCM KC |
|
| environmental characteristic |
EMC conforming to EN 61000-6-1
EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 EMC conforming to EN/IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204-3 Safety conforming to SELV |
|
| operating altitude |
2000 m
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| ambient air temperature for operation |
50…60 °C (with derating factor)
-25…50 °C (without) |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| relative humidity |
0…90 % during operation
0…95 % in storage |
|
| dielectric strength |
3500 V between input and ground
4000 V between input and output 500 V between output and ground |
| Package 1 Weight |
0.776 kg
|
|
|---|---|---|
| Package 1 Height |
0.650 dm
|
|
| Package 1 width |
1.650 dm
|
|
| Package 1 Length |
1.450 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
-
Power supplies for industrial use rail mounting ABL8RPS24030
