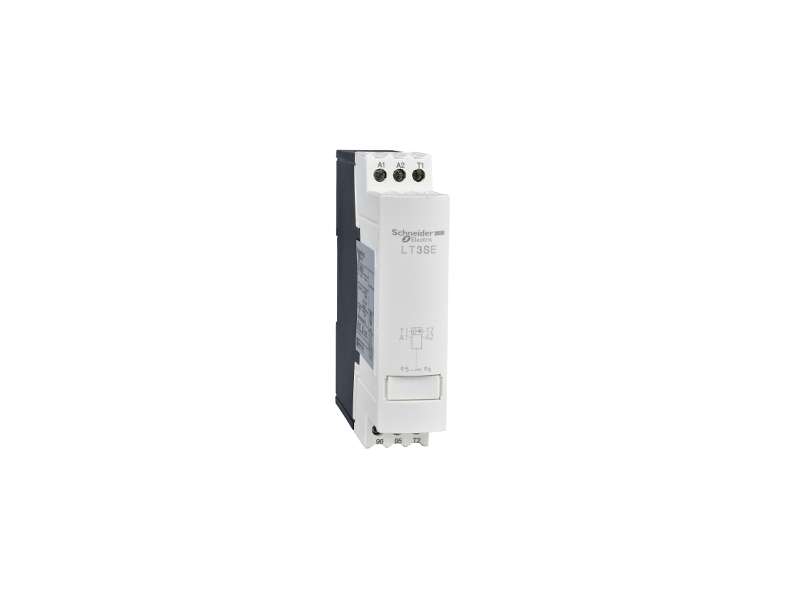

Schneider Electric Relej za PTC sonde TeSys - LT3 sa ručnim resetom - 115 V - 1 NO + 1 NC; LT3SM00M

Schneider Electric Relej za PTC sonde TeSys - LT3 sa ručnim resetom - 115 V - 1 NO + 1 NC; LT3SM00M

Thermistor protection units, TeSys LT3, 250VAC 50/60Hz, 115 to 230VAC 50/60Hz, 1NO+1NC, manual reset...

Brand: Schneider Electric
Product Code: LT3SM00M
Availability: Check availability
VAT-exclusive price: 33.044,00
VAT-inclusive price: 39.652,80

Thermistor protection units, TeSys LT3, 250VAC 50/60Hz, 115 to 230VAC 50/60Hz, 1NO+1NC, manual reset




Osnovne informacije
Grupa proizvoda LT3
Kratko ime uređaja LT3SM
Tip proizvoda ili komponente Zaštitne termistorske jedinice
[Uc] control circuit voltage 115...230 V AC 50/60 Hz
Reset Ručni
Dopunske informacije
Ograničenje napona upravljačkog kola 0.85...1.1 Uc
Tip i sastav kontakta 1 NC + 1 NO dvojni napon
[ith] dozvoljena termička struja u vazduhu 5 A za izlaz kontrolnog releja
[ui] nazivni napon izolacije Izlaz kontrolnog releja: 500 V AC
[ue] nazivni napon 250 V AC 50/60 Hz za izlaz kontrolnog releja
Signalna funkcija Indikacija greške
Indikacija napona
Tip upravljanja Ručni test
Ručni reset
Zamenjivost sonde Oznaka A u skladu sa IEC 60034-11
Snaga držanja w 1 W
Snaga držanja va 2,5 VA
otpornost 1500…1650 Ω reset
2700…3100 Ω okidanje
Broj sondi 0…6
Naponski ulaz < 2.5 V (1500 Ω) za sondu
< 7.5 V (4000 Ω) za sondu u skladu sa IEC 60034-11
Maksimalna otpornost za detekciju kratkog spoja 20 Ω
Uslovi upotrebe Povezivanje sondi 1000 m >2,5 mm²
Povezivanje sondi 500 m >1,5 mm²
[uimp] nazivni napon impulsa 2,5 kV
Nazivna snaga u va 100 VA pri 220 V - električna trajnost: 500000 ciklusa
Prekidna moć 2 A pri 24 V DC DC-13
3 A pri 250 V AC AC-16
6 A pri 120 V AC AC-16
Povezivanje - priključci Kolo napajanja: kavezni priključak 1 kabl(ovi) 0,75…2,5 mm²fleksibilni sa
Kolo napajanja: kavezni priključak 1 kabl(ovi) 0,75…2,5 mm²jednožični sa
Kolo napajanja: kavezni priključak 1 kabl(ovi) 1…2,5 mm²fleksibilni bez kablovskog završetka
Kolo napajanja: kavezni priključak 1 kabl(ovi) 1…2,5 mm²jednožični bez kablovskog završetka
Kolo napajanja: kavezni priključak 2 kabl(ovi) 0,75…2,5 mm²fleksibilni sa
Kolo napajanja: kavezni priključak 2 kabl(ovi) 0,75…2,5 mm²jednožični sa
Kolo napajanja: kavezni priključak 2 kabl(ovi) 1…2,5 mm²fleksibilni bez kablovskog završetka
Kolo napajanja: kavezni priključak 2 kabl(ovi) 1…2,5 mm²jednožični bez kablovskog završetka
Moment pritezanja 0.8 N.m
Visina 100 mm
Širina 22,5 mm
Dubina 100 mm
Masa proizvoda 0,22 kg


Main
Range of product LT3
Device short name LT3SM
Product or component type Thermistor protection units
[Uc] control circuit voltage 115...230 V AC 50/60 Hz
Reset Manual
Complementary
Control circuit voltage limits 0.85...1.1 Uc
Contacts type and composition 1 NC + 1 NO dual voltage
[Ith] conventional free air thermal current 5 A for output control relay
[Ui] rated insulation voltage Output control relay: 500 V AC
[Ue] rated operational voltage 250 V AC 50/60 Hz for output control relay
Signalling function Fault indication
Voltage indication
Control type Manual test
Manual reset
Probe interchangeability Label mark A conforming to IEC 60034-11
Hold-in power consumption in W 1 W
Hold-in power consumption in VA 2.5 VA
Resistance 1500…1650 Ohm reset
2700…3100 Ohm tripping
Number of probes 0…6
Input voltage < 2.5 V (1500 Ohm) for probe
< 7.5 V (4000 Ohm) for probe conforming to IEC 60034-11
Maximum short circuit detection resistance 20 Ohm
Condition of use Connection of probes 1000 m >2.5 mm²
Connection of probes 500 m >1.5 mm²
[Uimp] rated impulse withstand voltage 2.5 kV
Rated power in VA 100 VA at 220 V - electrical durability: 500000 cycles
Breaking capacity 2 A at 24 V DC DC-13
3 A at 250 V AC AC-16
6 A at 120 V AC AC-16
Connections - terminals Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²flexible with cable end
Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²solid with cable end
Power circuit: cage type connector 1 cable(s) 1…2.5 mm²flexible without cable end
Power circuit: cage type connector 1 cable(s) 1…2.5 mm²solid without cable end
Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²flexible with cable end
Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²solid with cable end
Power circuit: cage type connector 2 cable(s) 1…2.5 mm²flexible without cable end
Power circuit: cage type connector 2 cable(s) 1…2.5 mm²solid without cable end
Tightening torque 0.8 N.m
Height 100 mm
Width 22.5 mm
Depth 100 mm
Net weight 0.22 kg
Environment
Standards IEC 60947-8
IEC 60034-11
VDE 0660
IP degree of protection IP20 conforming to IEC 60529
IP20 conforming to VDE 0106
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C conforming to IEC 60068-2-2
-40…85 °C conforming to IEC 60068-2-2
Operating altitude <= 1500 m without derating in temperature
> 1500...3000 m with derating in temperature
Vibration resistance 1 gn 25...150 Hz conforming to IEC 60068-2-6
2.5 gn 2...25 Hz conforming to IEC 60068-2-6
Shock resistance 5 gn 11 ms conforming to IEC 60068-2-27
Electromagnetic compatibility Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2
Resistance to fast transient level 3 conforming to IEC 61000-4-4
Surge resistance 1.2/50-8/20 level 4 conforming to IEC 61000-4-5
Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3
Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 10.3 cm
Package 1 Length 10.3 cm
Package 1 Weight 184.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 36
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.943 kg
Contractual warranty
Warranty 18 months
