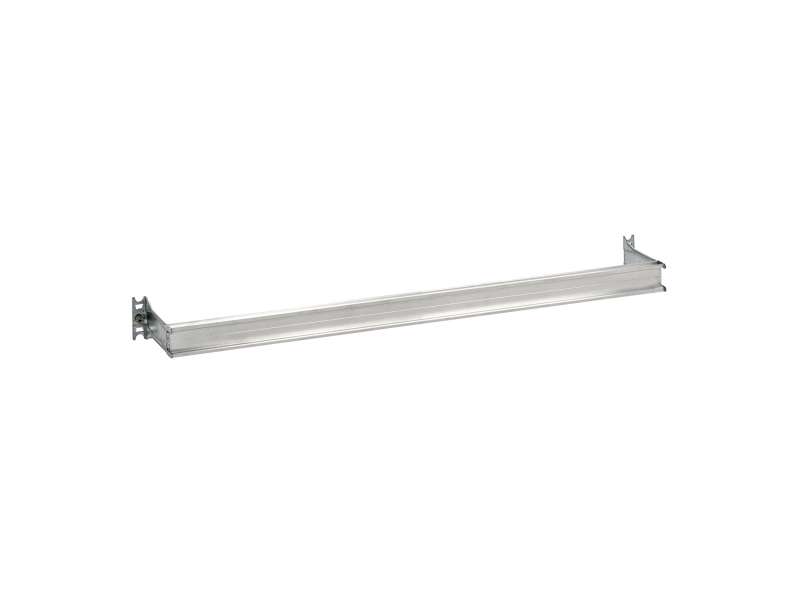

Schneider Electric Š850 instalaciona šina Prisma G; LVS03006

W850 MODULAR DEVICE RAIL PRISMA G...

Brand: Schneider Electric
Product Code: LVS03006
Availability: Check availability

VAT-exclusive price: 1.975,00

VAT-inclusive price: 2.370,00

Qnt:

W850 MODULAR DEVICE RAIL PRISMA G

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Rail
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G)
Type of rail	Modular
Installed device	Acti 9: fixed iC120 without earth leakage protection - control: toggle ComPact: fixed INS100 - control: direct front rotary handle - vertical installation ComPact: fixed INS160 - control: direct front rotary handle - vertical installation ComPact: fixed INS40 - control: direct front rotary handle - vertical installation ComPact: fixed INS63 - control: direct front rotary handle - vertical installation Acti 9: fixed modular device Multi9: fixed modular device Multi9: fixed NG125 without earth leakage protection - control: toggle Acti 9: fixed iC120 with earth leakage protection - control: toggle ComPact: fixed INS125 - control: direct front rotary handle - vertical installation Acti 9: fixed modular device <= 40 A Multi9: fixed modular device <= 40 A Multi9: fixed NG125 with earth leakage protection
Poles description	24 x 1P: fixed iC120 12 x 2P: fixed iC120 8 x 3P: fixed iC120 6 x 4P: fixed iC120 4 x 3P: fixed INS100 vertical installation 4 x 4P: fixed INS100 vertical installation 4 x 3P: fixed INS125 vertical installation 4 x 4P: fixed INS125 vertical installation 4 x 3P: fixed INS160 vertical installation 4 x 4P: fixed INS160 vertical installation 4 x 3P: fixed INS40 vertical installation 4 x 4P: fixed INS40 vertical installation 4 x 3P: fixed INS63 vertical installation 4 x 4P: fixed INS63 vertical installation 12 x 2P: fixed NG125 8 x 3P: fixed NG125 6 x 4P: fixed NG125 5 x 2P: fixed iC120 3 x 3P: fixed iC120 3 x 4P: fixed iC120 6 x 2P: fixed NG125 4 x 3P: fixed NG125 3 x 4P: fixed NG125

Complementary
installation description	Floor-standing enclosure - width 850 mm
Number of vertical modules [50 mm]	5 module(s): iC120 without earth leakage protection , direct in 850 mm Widefloor-standing enclosure 4 module(s): INS100, direct in 850 mm Widefloor-standing enclosure 5 module(s): INS100, direct in 850 mm Widefloor-standing enclosure 4 module(s): INS125, direct in 850 mm Widefloor-standing enclosure 5 module(s): INS125, direct in 850 mm Widefloor-standing enclosure 4 module(s): INS160, direct in 850 mm Widefloor-standing enclosure 5 module(s): INS160, direct in 850 mm Widefloor-standing enclosure 4 module(s): INS40, direct in 850 mm Widefloor-standing enclosure 4 module(s): INS63, direct in 850 mm Widefloor-standing enclosure 3 module(s): modular device <= 40 A, direct in 850 mm Widefloor-standing enclosure 4 module(s): modular device, direct in 850 mm Widefloor-standing enclosure 5 module(s): NG125 without earth leakage protection , direct in 850 mm Widefloor-standing enclosure 5 module(s): iC120 with earth leakage protection , direct in 850 mm Widefloor-standing enclosure 5 module(s): NG125 with earth leakage protection , direct in 850 mm Widefloor-standing enclosure
9 mm pitches	72
Quantity per set	Set of 1
Height	50 mm
Width	488 mm
Depth	102 mm
Product weight	0.3 kg
Colour	Natural
Material	Metal
Thickness	1.5 mm

Environment
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.5 cm
Package 1 Width	5.3 cm
Package 1 Length	69.9 cm
Package 1 Weight	326 g
Unit Type of Package 2	BB1
Number of Units in Package 2	8
Package 2 Height	13 cm
Package 2 Width	19 cm
Package 2 Length	73.5 cm
Package 2 Weight	2.895 kg
Unit Type of Package 3	P12
Number of Units in Package 3	240
Package 3 Height	78.8 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	99 kg
