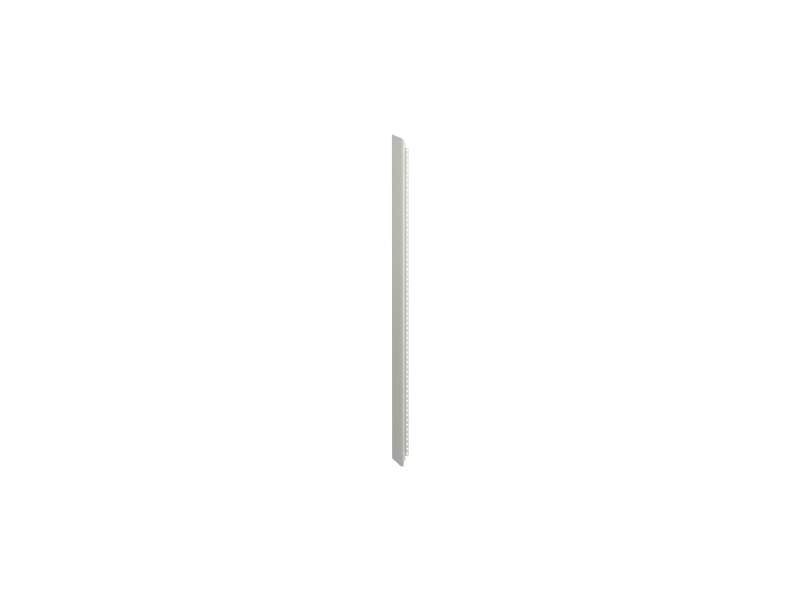

Schneider Electric Side panel, PrismaSeT G, 30M, for enclosure H1730mm, IP30, white, RAL 9003; LVS01034
Side panel, PrismaSeT G, 30M, for enclosure H1730mm, IP30, white, RAL 9003...
VAT-exclusive price: 13.044,00 |
VAT-inclusive price: 15.652,80 |
Side panel, PrismaSeT G, 30M, for enclosure H1730mm, IP30, white, RAL 9003
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Side panel |
| Accessory / separate part category |
Enclosure accessory Spare part |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| installation description | Floor-standing enclosure |
| Mounting location | Side |
| Number of vertical modules [50 mm] | 30 |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 195 mm |
| Height | 1525 mm |
| Depth | 45 mm |
| Net weight | 3.1 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP30 |
|---|---|
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 20.0 cm |
| Package 1 Length | 188.0 cm |
| Package 1 Weight | 3.451 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 32.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 67.5 kg |
