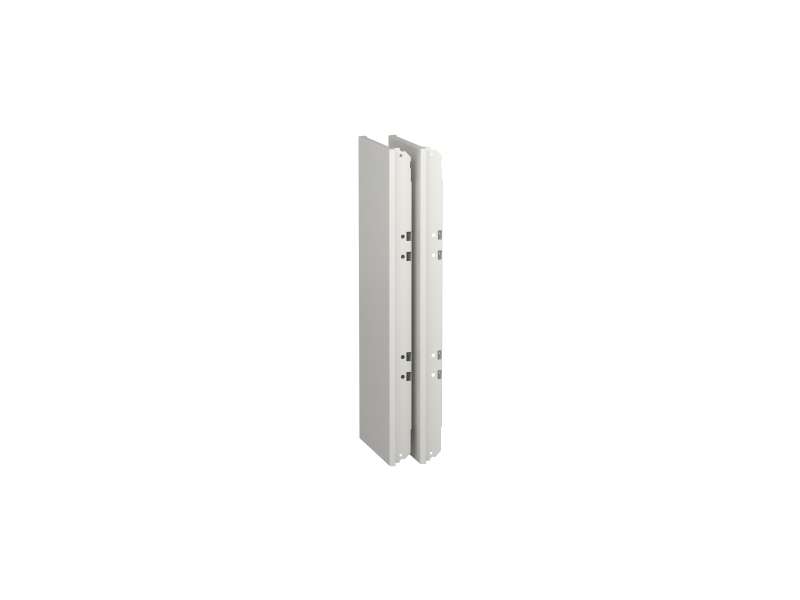

Schneider Electric Side panel, PrismaSeT G, for extension enclosure, 11M, H650mm, IP55, white, RAL 9003, set of 2 (left/right); LVS08353
Side panel, PrismaSeT G, for extension enclosure, 11M, H650mm, IP55, white, RAL 9003, set of 2 (left/right)...
VAT-exclusive price: 8.329,00 |
VAT-inclusive price: 9.994,80 |
Side panel, PrismaSeT G, for extension enclosure, 11M, H650mm, IP55, white, RAL 9003, set of 2 (left/right)
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Side panel |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure |
| installation description | Wall-mounted enclosure - width 600 mm |
| Kit composition | 2 side panel |
| Number of vertical modules [50 mm] | 11 |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Special colour options | Yes |
| Width | 250 mm |
| Height | 650 mm |
| Product weight | 4.24 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP55 for enclosure |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 23.0 cm |
| Package 1 Length | 64.0 cm |
| Package 1 Weight | 4.457 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 29.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 39.0 kg |
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Side panel |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure |
| installation description | Wall-mounted enclosure - width 600 mm |
| Kit composition | 2 side panel |
| Number of vertical modules [50 mm] | 11 |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Special colour options | Yes |
| Width | 250 mm |
| Height | 650 mm |
| Product weight | 4.24 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP55 for enclosure |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 23.0 cm |
| Package 1 Length | 64.0 cm |
| Package 1 Weight | 4.457 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 29.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 39.0 kg |
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Side panel |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure |
| installation description | Wall-mounted enclosure - width 600 mm |
| Kit composition | 2 side panel |
| Number of vertical modules [50 mm] | 11 |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Special colour options | Yes |
| Width | 250 mm |
| Height | 650 mm |
| Product weight | 4.24 kg |
| Quantity per set | Set of 1 |
