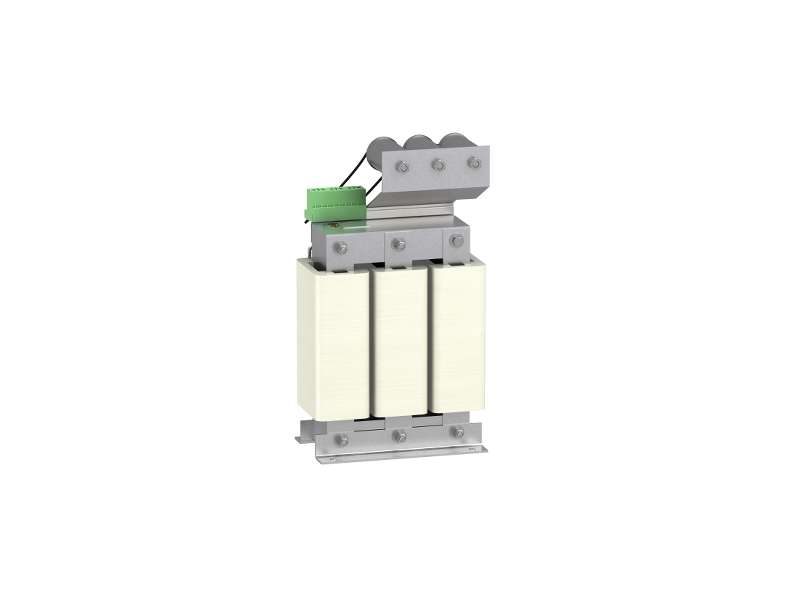

Schneider Electric Sinusni filter - 28 A - za Altivar Process frekventne regulatore;VW3A5216
Sinus filter - 28 A - for Altivar Process variable speed drives...
Price on request
Sinus filter - 28 A - for Altivar Process variable speed drives
| product or component type | Sinus filter |
|---|---|
| range compatibility |
Altivar Process ATV900 Altivar Process ATV600 |
| product specific application | Output filter |
| [In] rated current | 28 A |
| thermal losses | 280 W, 115 °C |
| product compatibility |
ATV630 variable speed drive wall mount - 11 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 15 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 18.5 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 22 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 11 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 15 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 18.5 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 22 kW, 500...690 V three phase ATV630 variable speed drive wall mount, 15 hp, 600 V three phase ATV630 variable speed drive wall mount, 20 hp, 600 V three phase ATV630 variable speed drive wall mount, 25 hp, 600 V three phase ATV630 variable speed drive wall mount, 30 hp, 600 V three phase ATV930 variable speed drive wall mount, 15 hp, 600 V three phase ATV930 variable speed drive wall mount, 20 hp, 600 V three phase ATV930 variable speed drive wall mount, 25 hp, 600 V three phase ATV930 variable speed drive wall mount, 30 hp, 600 V three phase |
| switching frequency | 2 kHz |
| maximum output frequency | 70 Hz |
| maximum permissible voltage | 690 V AC |
| electrical connection | Terminal |
|---|---|
| max current | 1.5 x nominal current (duration = 60 s) |
| net weight | 25.4 kg |
| IP degree of protection | IP00 |
|---|---|
| pollution degree | 2 conforming to EN 50178 |
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -10…45 °C |
| ambient air temperature for storage | -40…65 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| standards | UL 508 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 34.0 kg |
| Package 1 Height | 32.0 cm |
| Package 1 width | 42.0 cm |
| Package 1 Length | 55.0 cm |
| product or component type | Sinus filter |
|---|---|
| range compatibility |
Altivar Process ATV900 Altivar Process ATV600 |
| product specific application | Output filter |
| [In] rated current | 28 A |
| thermal losses | 280 W, 115 °C |
| product compatibility |
ATV630 variable speed drive wall mount - 11 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 15 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 18.5 kW, 500...690 V three phase ATV630 variable speed drive wall mount - 22 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 11 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 15 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 18.5 kW, 500...690 V three phase ATV930 variable speed drive wall mount - 22 kW, 500...690 V three phase ATV630 variable speed drive wall mount, 15 hp, 600 V three phase ATV630 variable speed drive wall mount, 20 hp, 600 V three phase ATV630 variable speed drive wall mount, 25 hp, 600 V three phase ATV630 variable speed drive wall mount, 30 hp, 600 V three phase ATV930 variable speed drive wall mount, 15 hp, 600 V three phase ATV930 variable speed drive wall mount, 20 hp, 600 V three phase ATV930 variable speed drive wall mount, 25 hp, 600 V three phase ATV930 variable speed drive wall mount, 30 hp, 600 V three phase |
| switching frequency | 2 kHz |
| maximum output frequency | 70 Hz |
| maximum permissible voltage | 690 V AC |
| electrical connection | Terminal |
|---|---|
| max current | 1.5 x nominal current (duration = 60 s) |
| net weight | 25.4 kg |
| IP degree of protection | IP00 |
|---|---|
| pollution degree | 2 conforming to EN 50178 |
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -10…45 °C |
| ambient air temperature for storage | -40…65 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| standards | UL 508 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 34.0 kg |
| Package 1 Height | 32.0 cm |
| Package 1 width | 42.0 cm |
| Package 1 Length | 55.0 cm |
