Schneider Electric Slobodnost. orman -poliest. PLAZT sa otvorenim podnožjem+krov 1500x1000x420 IP44 ; NSYPLAZT15104G
Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1000x420 IP44...
VAT-exclusive price: 234.288,00 |
VAT-inclusive price: 281.145,60 |

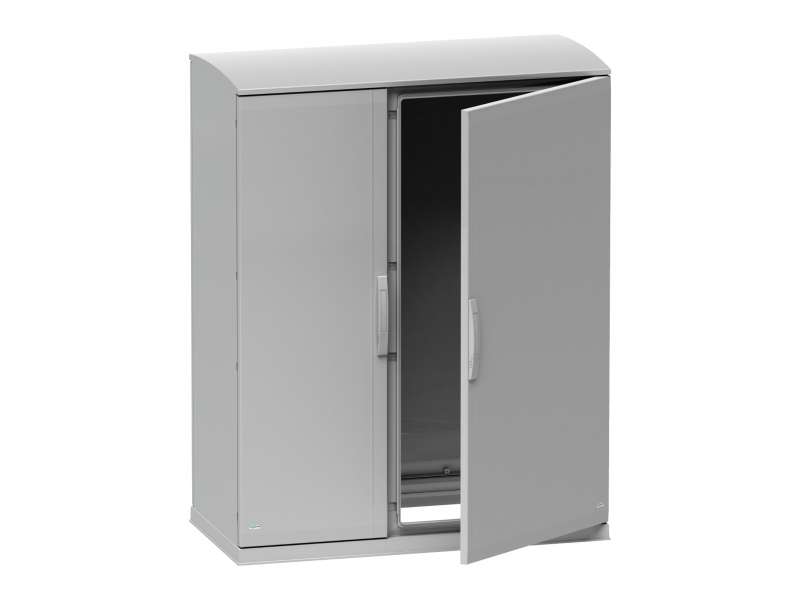

Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1500x1000x420 IP44
| range |
Thalassa
|
|
|---|---|---|
| product name |
Thalassa PLA
|
|
| Enclosure type |
Multi-purpose
|
|
| product or component type |
Suitable enclosure
|
|
| Version |
PLAZT
|
|
| Nominal height |
1500 mm
|
|
| Nominal width |
1000 mm
|
|
| Nominal depth |
420 mm
|
|
| enclosure mounting |
Floor-standing
|
|
| device composition |
1 top part
1 bottom part 2 side part 2 door 2 rear panel 1 canopy 1 plinth |
| body type |
Open top and bottom part assembled with side parts
|
|
|---|---|---|
| door type |
Plain front
|
|
| number of doors |
2 door(s)
|
|
| door opening side |
Right and left (180 °)
|
|
| lock type |
4 points lock, handle with 5 mm double bar insert
|
|
| accessibility for operation |
Bottom
Top Front Rear |
|
| removable parts |
Door by hinges
Rear panel by fixing element Canopy by fixing element |
|
| material |
Polyester reinforced with fibreglass
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
IEC 62208
|
|
| product certifications |
Veritas
|
|
| electrical insulation class |
Class II
|
| IP degree of protection |
IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
|
|
|---|---|---|
| IK degree of protection |
IK10 conforming to IEC 62262 (plain door)
|
|
| fire resistance |
960 °C conforming to IEC 62208
|
|
| ambient air temperature for storage |
-35…90 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
80.274 kg
|
|
| Package 1 Height |
160.3 cm
|
|
| Package 1 width |
103 cm
|
|
| Package 1 Length |
38 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
-
Thalassa PLA NSYPLAZT15104G
