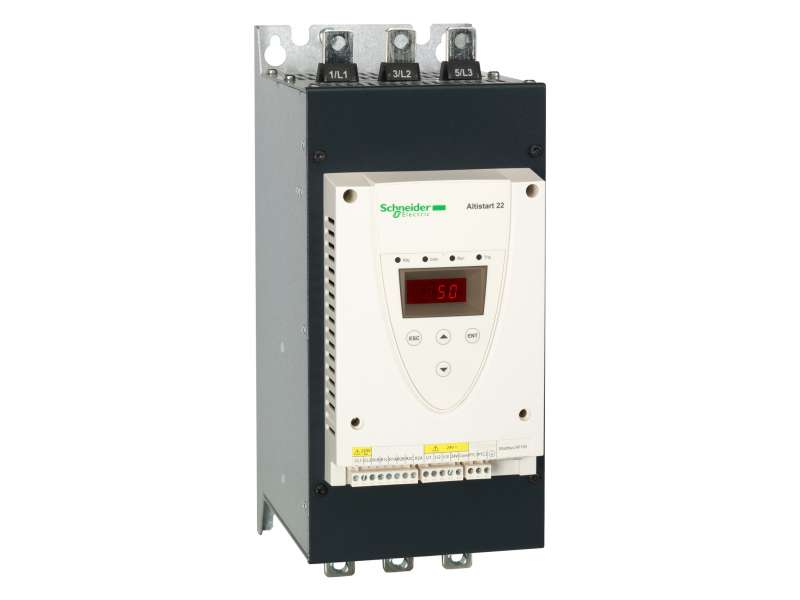

Schneider Electric Soft starter-ATS22-kontrolni napon 220V-napajanje 230V(37kW)/400...440V(75kW) ; ATS22C14Q
soft starter-ATS22-control 220V-power 230V(37kW)/400...440V(75kW)...
VAT-exclusive price: 217.876,00 |
VAT-inclusive price: 261.451,20 |
soft starter-ATS22-control 220V-power 230V(37kW)/400...440V(75kW)
| range of product |
Altistart 22
|
|
|---|---|---|
| product or component type |
Soft starter
|
|
| product destination |
Asynchronous motors
|
|
| product specific application |
Pumps and fans
|
|
| component name |
ATS22
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
230...440 V - 15...10 %
|
|
| motor power kW |
37 kW 230 V
75 kW 400 V 75 kW 440 V |
|
| factory setting current |
131 A
|
|
| power dissipation in W |
82 W for standard applications
|
|
| utilisation category |
AC-53A
|
|
| type of start |
Start with torque control (current limited to 3.5 In)
|
|
| IcL starter rating |
140 A for connection in the motor supply line for standard applications
|
|
| IP degree of protection |
IP00
|
| assembly style |
With heat sink
|
|
|---|---|---|
| function available |
Internal bypass
|
|
| supply voltage limits |
195…484 V
|
|
| supply frequency |
50...60 Hz - 10...10 %
|
|
| network frequency |
45...66 Hz
|
|
| device connection |
In the motor supply line
To the motor delta terminals |
|
| [Uc] control circuit voltage |
230 V - 15...10 % 50/60 Hz
|
|
| control circuit consumption |
20 W
|
|
| discrete output number |
2
|
|
| discrete output type |
Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
|
| minimum switching current |
100 mA at 12 V DC (relay outputs)
|
|
| maximum switching current |
5 A 250 V AC resistive 1 relay outputs
5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs |
|
| discrete input number |
3
|
|
| discrete input type |
(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
|
|
| discrete input voltage |
24 V <= 30 V
|
|
| discrete input logic |
Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
|
|
| output current |
0.4...1 Icl adjustable
|
|
| PTC probe input |
750 Ohm
|
|
| communication port protocol |
Modbus
|
|
| connector type |
1 RJ45
|
|
| communication data link |
Serial
|
|
| physical interface |
RS485 multidrop
|
|
| transmission rate |
4800, 9600 or 19200 bps
|
|
| installed device |
31
|
|
| protection type |
Phase failure: line
Thermal protection: motor Thermal protection: starter |
|
| marking |
CE
|
|
| type of cooling |
Forced convection
|
|
| operating position |
Vertical +/- 10 degree
|
|
| height |
356 mm
|
|
| width |
150 mm
|
|
| depth |
229.5 mm
|
|
| net weight |
18 kg
|
|
| Motor power range AC-3 |
30…50 kW at 200…240 V 3 phases
55…100 kW at 380…440 V 3 phases |
|
| motor starter type |
Soft starter
|
| electromagnetic compatibility |
Conducted and radiated emissions level A conforming to IEC 60947-4-2
Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|
|---|---|---|
| standards |
EN/IEC 60947-4-2
|
|
| product certifications |
UL
CSA C-Tick GOST CCC |
|
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm (f= 2…13 Hz) conforming to EN/IEC 60068-2-6 |
|
| shock resistance |
15 gn for 11 ms conforming to EN/IEC 60068-2-27
|
|
| noise level |
56 dB
|
|
| pollution degree |
Level 2 conforming to IEC 60664-1
|
|
| relative humidity |
0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
|
|
| ambient air temperature for operation |
-10…40 °C (without derating)
40…60 °C (with current derating 2.2 % per °C) |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| operating altitude |
<= 1000 m without derating
> 1000...< 2000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
13.207 kg
|
|
| Package 1 Height |
25.5 cm
|
|
| Package 1 width |
32.5 cm
|
|
| Package 1 Length |
41.5 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
4
|
|
| Package 2 Weight |
65.828 kg
|
|
| Package 2 Height |
63 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Altistart 22 ATS22C14Q
