Schneider Electric Spacial - set za spoljašnju ugradnju frekventnog regulatora - Altivar Process veličina S1 - IP55;NSYPTDS1
Spacial - Flush Mounting drive installation kit - Altivar Process size S1 - IP55...
VAT-exclusive price: 54.624,00 |
VAT-inclusive price: 65.548,80 |

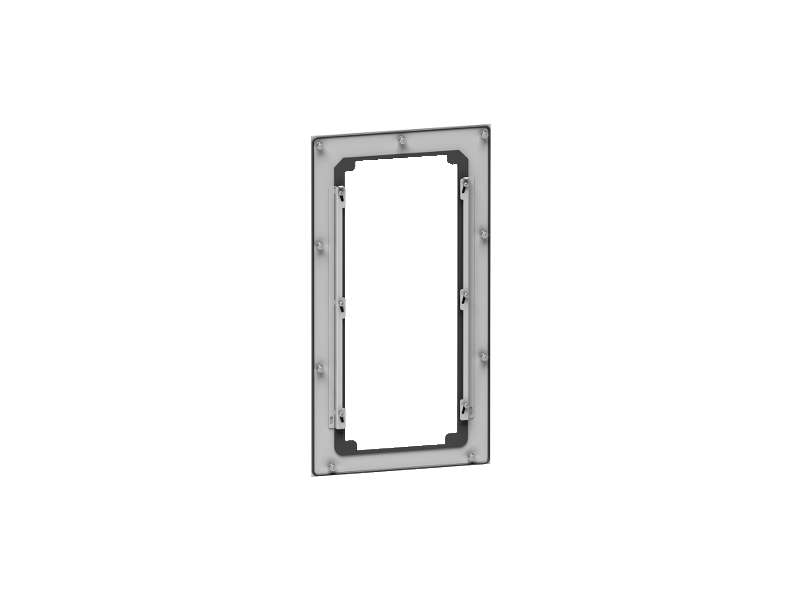

Spacial - Flush Mounting drive installation kit - Altivar Process size S1 - IP55
| range | Spacial |
|---|---|
| product or component type | Drive flush mounting kit |
| accessory category | Mounting and fixing accessory |
| product specific application | Process and utilities |
| range compatibility |
Spacial SF and SM enclosures: H:>=400 mm x W:>=300 mm Spacial S3D enclosure: H:>=400 mm x W:>=300 mm Altivar variable speed drive ATV630 Altivar variable speed drive ATV930 |
| compatibility for Altivar Process 630-930, size: | 1 |
| motor power kW |
0.75 kW 220/240 V 1.5 kW 220/240 V 2.2 kW 220/240 V 3 kW 220/240 V 4 kW 220/240 V 0.75 kW 380/480 V 1.5 kW 380/480 V 2.2 kW 380/480 V 3 kW 380/480 V 4 kW 380/480 V 5.5 kW 380/480 V |
| mounting location |
Mode 1: back of enclosure on mounting plate Mode 2: inside enclosure |
| kit composition |
1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating. Fixing by screws and nuts 1 x fixing accessories 1 x drilling template 1 x instruction sheet 1 x edge protector profile, plastic. |
| permanent permissible load | 4.8 kg |
|---|---|
| colour | Grey (RAL 7035) |
| height |
360 mm external: 307 mm cut-out: |
| width |
235 mm external: 190 mm cut-out: |
| depth | 22 mm wall-enclosure separation: |
| net weight | 1.58 kg |
| services |
Configuration of enclosurepre-drilled back at requested dimensions Factory installation drive flush mounting kit on enclosure |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.565 kg |
| Package 1 Height | 5 cm |
| Package 1 width | 25.6 cm |
| Package 1 Length | 37.8 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Weight | 9.077 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
