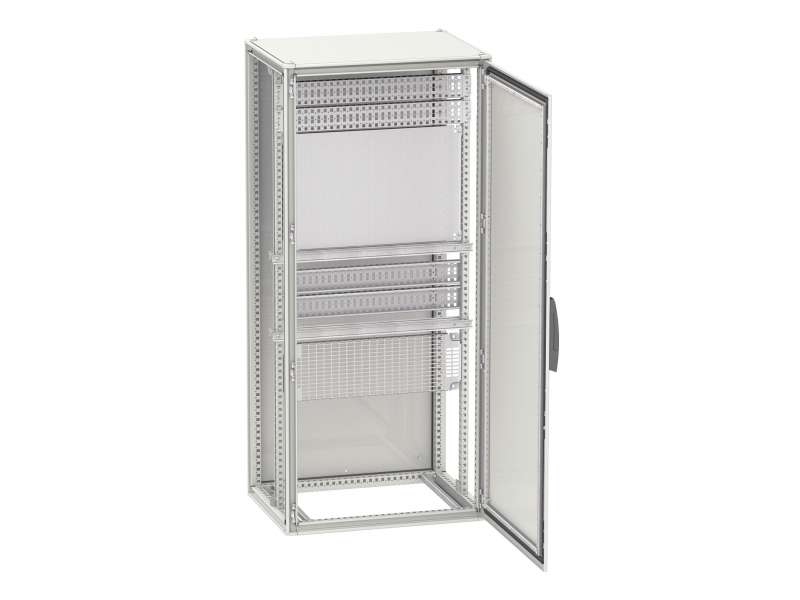

Schneider Electric Spacial SF elektronski orman - sastavljen - 2000x800x1000 mm

Spacial SF electronic enclosure - assembled - 2000x800x1000 mm...

Brand: Schneider Electric
Product Code: NSYSF208100E
Availability: Check availability

VAT-exclusive price: 364.809,00

VAT-inclusive price: 437.770,80

Qnt:

Spacial SF electronic enclosure - assembled - 2000x800x1000 mm

Main
range	Spacial
Extended range	Spacial SF-E
Application	Electronic application
product or component type	Suitable enclosure
enclosure nominal height	2000 mm
enclosure nominal width	800 mm
enclosure nominal depth	1000 mm
enclosure mounting	Floor-standing
device composition	1 structure 1 locking system with handle: door 1 roof 2 door: front and rear 2 side panels

Complementary
structure type	Panels and doors built into the structure Vertical uprights joined with top and bottom frames Formed from a single section Perforated structure with a pitch of 25 mm
door type	Plain front Glazed rear
number of doors	Front and rear: 2 door(s)
door opening side	Reversible (120 °)
lock type	4 points lock, handle with 5 mm double bar insert front and rear doors
mounting plate description	Without mounting plate
type of gland plate	Without gland plate
accessibility for operation	Sides of enclosure Rear Front
removable parts	Door by screws hinge Roof by screws Side panel by screws
material	Frame: galvanised steel Uprights: galvanised steel Door: sheet steel Panels: sheet steel Hinge: zamak Handle: polyamide 6 with 30 % fibre glass
surface finish	Epoxy-polyester powder
colour	Enclosure: grey (RAL 7035) Handle: black (RAL 9005)

Environment
standards	IEC 62208
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262 (of transparent door) IK10 conforming to IEC 62262 (of plain door)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	150 kg
Package 1 Height	213 cm
Package 1 width	84.5 cm
Package 1 Length	109 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
