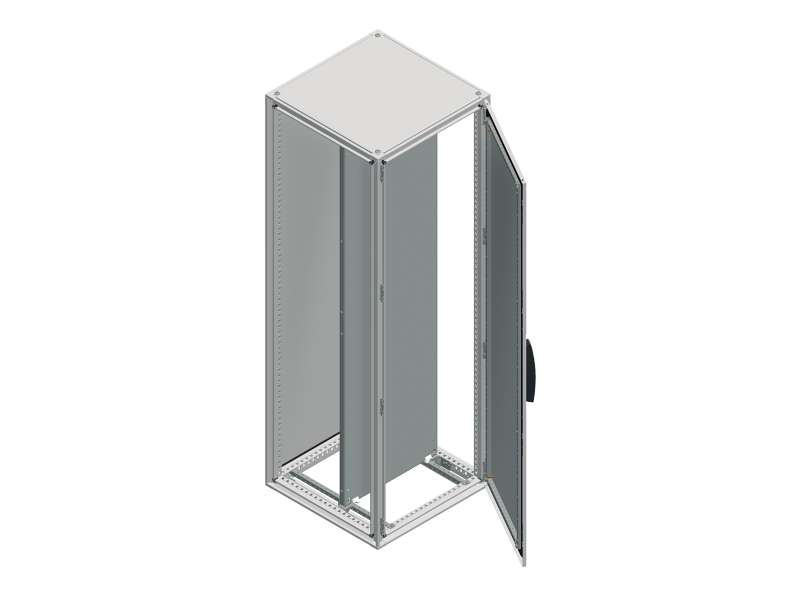

Schneider Electric Spacial SF orman sa montažnom pločom - sastavljen - 1200x600x400 mm
Spacial SF enclosure with mounting plate - assembled - 1200x600x400 mm...
VAT-exclusive price: 134.991,00 |
VAT-inclusive price: 161.989,20 |
Spacial SF enclosure with mounting plate - assembled - 1200x600x400 mm
| range | Spacial |
|---|---|
| Extended range | Spacial SF |
| Application | Multi-purpose |
| product or component type | Suitable enclosure |
| enclosure nominal height | 1200 mm |
| enclosure nominal width | 600 mm |
| enclosure nominal depth | 400 mm |
| enclosure mounting | Floor-standing |
| device composition |
2 sliding rails 4 mounting plate bracket 1 structure 1 door 1 locking system with handle: door 1 rear panel 1 roof 1 mounting plate |
| structure type |
Formed from a single section Vertical uprights joined with top and bottom frames Panels and doors built into the structure Perforated structure with a pitch of 25 mm |
|---|---|
| door type | Plain front |
| number of doors | Front: 1 door(s) |
| door opening side | Reversible (120 °) |
| lock type | 4 points lock, handle with 5 mm double bar insert front door |
| mounting plate description | Plain |
| type of gland plate | Without gland plate |
| accessibility for operation |
Front Sides of enclosure Rear |
| removable parts |
Door by screws hinge Mounting plate by screws mounting plate bracket Rear panel by screws Roof by screws Mounting plate bracket by screws Sliding rail by screws |
| material |
Frame: galvanised steel Uprights: galvanised steel Door: sheet steel Panels: sheet steel Hinge: zamak Handle: polyamide 6 with 30 % fibre glass |
| surface finish | Epoxy-polyester powder |
| colour |
Enclosure: grey (RAL 7035) Handle: black (RAL 9005) |
| net weight | 76.871 kg |
| standards | IEC 62208 |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 76.871 kg |
| Package 1 Height | 133 cm |
| Package 1 width | 64.5 cm |
| Package 1 Length | 49 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
Spacial SF NSYSF12640P
