Schneider Electric Spacial SF/SM profili - 600 mm;NSYSLCR60
Spacial SF/SM light cross rails - 600 mm...
VAT-exclusive price: 3.927,00 |
VAT-inclusive price: 4.712,40 |

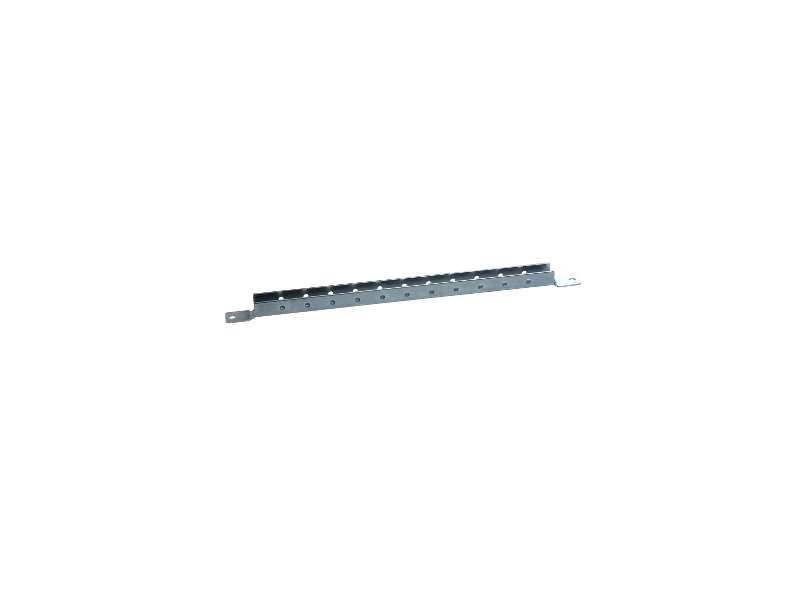

Spacial SF/SM light cross rails - 600 mm
| range | Spacial |
|---|---|
| accessory / separate part category | Mounting accessory |
| product or component type | Light cross rail |
| Anwendung | Multi-purpose |
| Nennmaße des Gehäuses | W: 600 mm |
| range compatibility |
Spacial SF Spacial SM Spacial SFX |
|---|---|
| mounting location |
On structure of enclosure Between cross rails |
| mounting support | Adaptation profile, on SM enclosures |
| device composition |
Fixing elements 2 cross rails |
| quantity per set | Set of 1 |
| material | Steel |
| surface finish | Zinc coated |
| fixing mode | By screws - screw type M6 self tapping |
| adjustment | Adjustable with a pitch of 25 mm |
| number of horizontal rows | 1 |
| height | 30 mm |
| width |
550 mm fixing centers: 600 mm nominal: 510 mm useful: |
| depth | 18.6 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 619.0 g |
| Package 1 Height | 3 cm |
| Package 1 width | 2.5 cm |
| Package 1 Length | 56.3 cm |
| Warranty | 18 months |
|---|
