Schneider Electric Spacial SF/SM univerzalni profili za montažu - 40 mm;NSYSUCR40160
Spacial SF/SM universal cross rails - 40 mm...
VAT-exclusive price: 13.919,00 |
VAT-inclusive price: 16.702,80 |

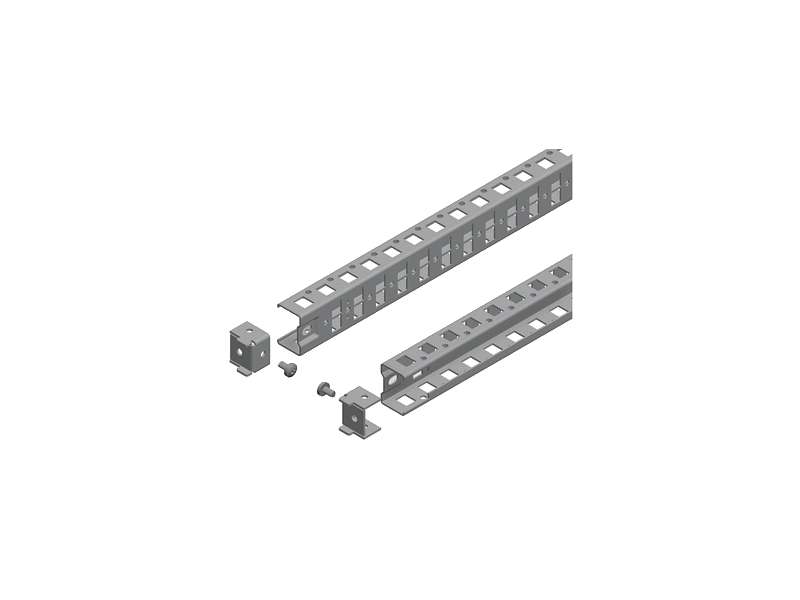

Spacial SF/SM universal cross rails - 40 mm
| range | Spacial |
|---|---|
| accessory / separate part category | Mounting accessory |
| product or component type | Universal cross rail |
| Anwendung | Multi-purpose |
| Nennmaße des Gehäuses | 1600 mm |
| range compatibility |
Spacial SF Spacial SM Spacial SFX Spacial SMX |
|---|---|
| mounting location |
On structure of enclosure Between cross rails |
| mounting support | Adaptation profile, on SM enclosures |
| installation direction | Vertical |
| device composition |
Fixing elements 2 cross rails 4 supports |
| quantity per set | Set of 1 |
| material | Steel |
| surface finish | Zinc coated |
| fixing mode | By screws |
| adjustment | Adjustable with a pitch of 25 mm |
| number of horizontal rows | 1 |
| height |
1600 mm nominal: 1507 mm useful: |
| width | 40 mm |
| depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.8 kg |
| Package 1 Height | 152 cm |
| Package 1 width | 6 cm |
| Package 1 Length | 5 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 16 |
| Package 2 Weight | 60.8 kg |
| Package 2 Height | 100 cm |
| Package 2 width | 210 cm |
| Package 2 Length | 120 cm |
| Warranty | 18 months |
|---|
