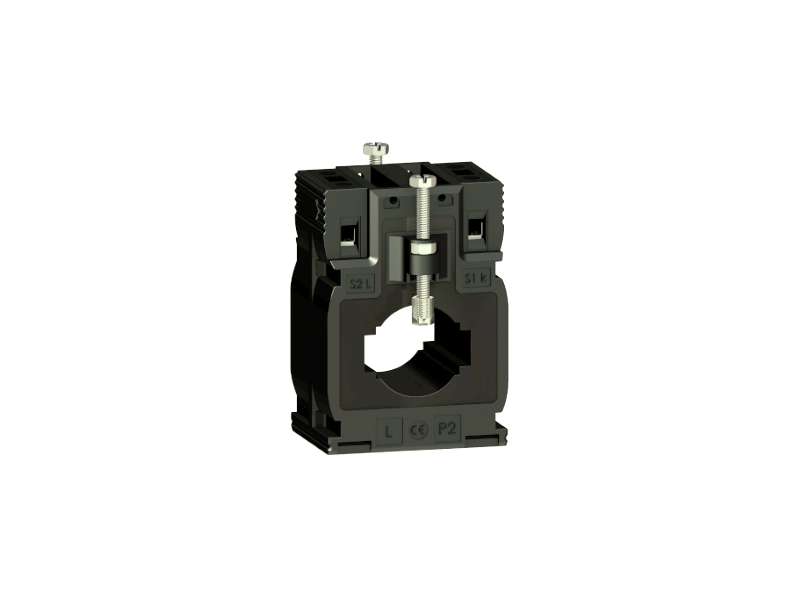

Schneider Electric Strujni transformator trop. DIN šina 150 5 kablovi d. 27 - sabirnice 10x32 15x25;METSECT5MA015
current transformer tropicalised DIN mount 150 5 cables d. 27 - bars 10x32 15x25...
VAT-exclusive price: 5.351,00 |
VAT-inclusive price: 6.421,20 |
current transformer tropicalised DIN mount 150 5 cables d. 27 - bars 10x32 15x25
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class |
Class 0.5 at 3 VA Class 1 at 5 VA |
| [In] rated current | 150 A |
| current transformer type | Tropicalised for busbar and cable |
|---|---|
| current transformer ratio | 150/5 |
| [Ith] conventional free air thermal current | 9 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Insulated locking screw |
| mounting support |
DIN rail Mounting plate Busbar |
| width | 56 mm outside: |
| height | 80 mm outside: |
| depth |
43 mm frame: 63 mm total: |
| diameter | 27 mm |
| net weight | 0.298 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| cable outer diameter | 27 mm |
| opening of bars |
32.5 x 10.5 25.5 x 15.5 |
| sealing | Without |
| standards |
VDE 0414 IEC 61869-2 |
|---|---|
| product certifications |
EAC CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 305.0 g |
| Package 1 Height | 7 cm |
| Package 1 width | 7 cm |
| Package 1 Length | 9.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 55 |
| Package 2 Weight | 17.427 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
