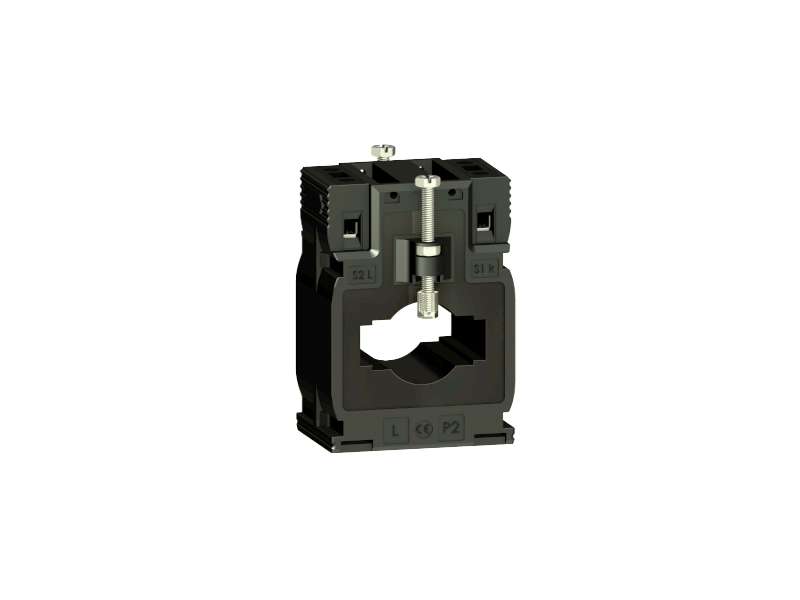

Schneider Electric Strujni transformator trop. DIN šina 300 5 kablovi d. 26 - sabirnice 12x40 15x32

current transformer tropicalised DIN mount 300 5 cables d. 26 - bars 12x40 15x32...

Brand: Schneider Electric
Product Code: METSECT5MB030
Availability: Check availability

VAT-exclusive price: 6.253,00

VAT-inclusive price: 7.503,60

Qnt:

Description
Specification

current transformer tropicalised DIN mount 300 5 cables d. 26 - bars 12x40 15x32

Main
range	PowerLogic
product name	CT
product or component type	Current transformer
secondary current	5 A
accuracy class	Class 0.5 at 4 VA Class 1 at 6 VA
[In] rated current	300 A

Complementary
current transformer type	Tropicalised for busbar and cable
current transformer ratio	300/5
[Ith] conventional free air thermal current	18 kA
dynamic withstand current	2.5 Ith
maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV
mounting mode	Clip-on By screws Insulated locking screw
mounting support	Busbar DIN rail Mounting plate
width	60 mm outside:
height	85 mm outside:
depth	43 mm frame: 63 mm total:
diameter	26 mm
net weight	0.323 kg
[Uimp] rated impulse withstand voltage	3 kV
electrical insulation class	Class B
cable outer diameter	26 mm
opening of bars	32.5 x 15.5 40.5 x 12.5
sealing	Without

Environment
standards	IEC 61869-2 VDE 0414
product certifications	CE
IP degree of protection	IP20
relative humidity	0…95 %
ambient air temperature for operation	-25…60 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	315.0 g
Package 1 Height	7.2 cm
Package 1 width	7 cm
Package 1 Length	9 cm
Unit Type of Package 2	S03
Number of Units in Package 2	55
Package 2 Weight	17.812 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
