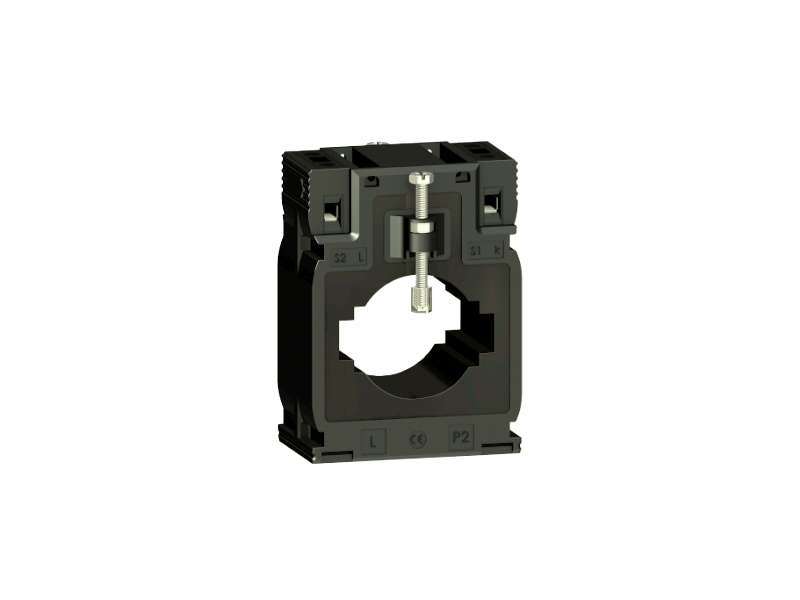

Schneider Electric Strujni transformator tropi. DIN šina 800 5 kablovi d. 40 -sabirnice 12x50 20x40;METSECT5MD080
current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40...
VAT-exclusive price: 8.572,00 |
VAT-inclusive price: 10.286,40 |
current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class |
Class 0.5 at 8 VA Class 1 at 12 VA |
| [In] rated current | 800 A |
| current transformer type | Tropicalised for busbar and cable |
|---|---|
| current transformer ratio | 800/5 |
| [Ith] conventional free air thermal current | 48 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode |
By screws Clip-on Insulated locking screw |
| mounting support |
Busbar Mounting plate DIN rail |
| width | 70 mm outside: |
| height | 95 mm outside: |
| depth |
45 mm frame: 65 mm total: |
| diameter | 40 mm |
| net weight | 0.369 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| cable outer diameter | 40 mm |
| opening of bars |
50.5 x 12.5 40.5 x 20.5 |
| sealing | Without |
| standards |
VDE 0414 IEC 61869-2 |
|---|---|
| product certifications | CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 370.0 g |
| Package 1 Height | 9 cm |
| Package 1 width | 7.5 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 33 |
| Package 2 Weight | 16.645 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
