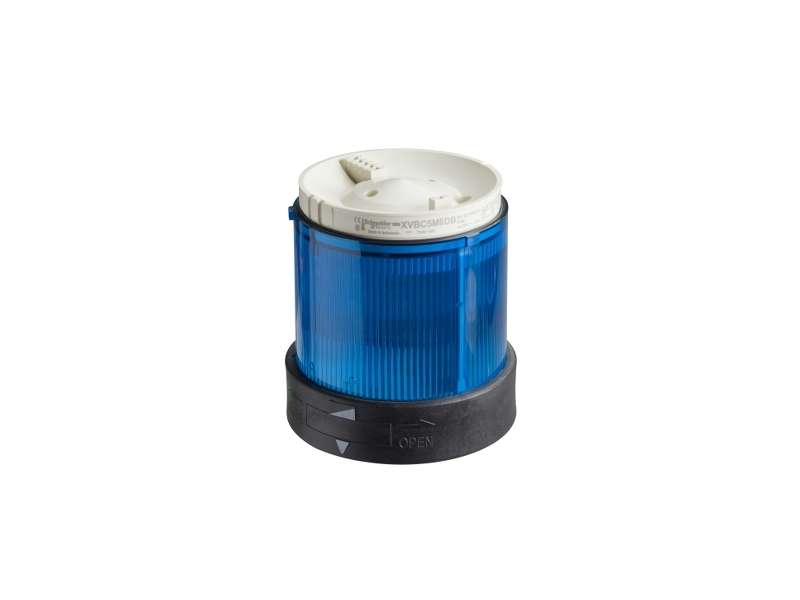

Harmony XVB, Illuminated unit for modular tower lights, plastic, blue, Ø70, steady, integral LED, 24 V AC/DC
Main
|
range of product |
Harmony XVB Universal |
|
product or component type |
Indicator bank |
|
beacon or indicator bank unit type |
Illuminated unit |
|
signalling type |
Steady |
|
mounting diameter |
70 mm |
|
component name |
XVBC |
|
material |
Polycarbonate |
|
light source |
Integral LED, blue |
|
bulb type |
Protected LED |
|
[Us] rated supply voltage |
24 V AC/DC |
Complementary
|
assembly style |
Customer assembly, up to 5 units |
|
connections - terminals |
Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|
[Ui] rated insulation voltage |
250 V conforming to IEC 60947-1 |
|
nominal voltage limit |
0.85...1.1 Un conforming to IEC 60947-5-1 |
|
current consumption |
< 47 mA AC/DC |
|
[Uimp] rated impulse withstand voltage |
4 kV conforming to IEC 60947-1 |
|
CAD overall width |
70 mm |
|
CAD overall height |
63 mm |
|
CAD overall depth |
70 mm |
|
net weight |
0.15 kg |
Environment
|
pollution degree |
2 |
|
product certifications |
CCC
EAC
CSA C22-2 No 14
UL 508 |
|
standards |
EN/IEC 60947-5-1 |
|
protective treatment |
TC |
|
ambient air temperature for storage |
-40…70 °C |
|
ambient air temperature for operation |
-25…50 °C |
|
electrical shock protection class |
Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140 |
|
IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529 |
|
NEMA degree of protection |
Type 4X conforming to UL (indoor) |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
136.0 g |
|
Package 1 Height |
9.3 cm |
|
Package 1 width |
8.0 cm |
|
Package 1 Length |
8.0 cm |
|
Unit Type of Package 2 |
P06 |
|
Number of Units in Package 2 |
288 |
|
Package 2 Weight |
53.372 kg |
|
Package 2 Height |
80.0 cm |
|
Package 2 width |
80.0 cm |
|
Package 2 Length |
60.0 cm |
|
Unit Type of Package 3 |
S03 |
|
Number of Units in Package 3 |
36 |
|
Package 3 Weight |
5.48 kg |
|
Package 3 Height |
30.0 cm |
|
Package 3 width |
30.0 cm |
|
Package 3 Length |
40.0 cm |
Contractual warranty
|
Warranty |
18 months |
