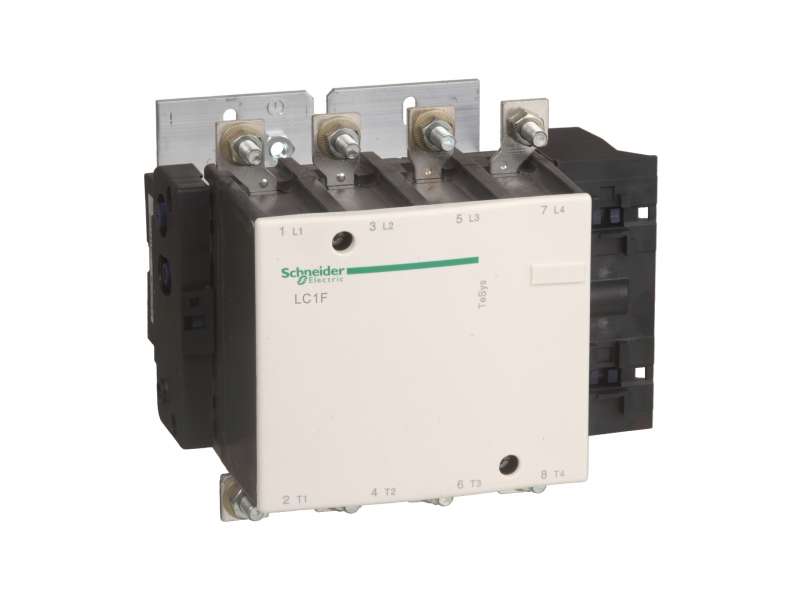

Schneider Electric TeSys F kontaktor - 4P (4 NO) - AC-1 - <= 440 V 315 A - kalem 220 V AC; LC1F2254M5
TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 315 A - coil 220 V AC...
VAT-exclusive price: 104.098,52 |
VAT-inclusive price: 124.918,22 |
TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 315 A - coil 220 V AC
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys F
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1F
|
|
| contactor application |
Resistive load
|
|
| utilisation category |
AC-1
|
|
| poles description |
4P
|
|
| power pole contact composition |
4 NO
|
|
| [Ue] rated operational voltage |
<= 460 V DC
<= 690 V AC 50/60 Hz |
|
| [Ie] rated operational current |
315 A 104 °F (40 °C)) <= 440 V AC-1
|
|
| [Uc] control circuit voltage |
220 V AC 50 Hz
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
|---|---|---|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
315 A 104 °F (40 °C)
|
|
| rated breaking capacity |
1800 A IEC 60947-4-1
|
|
| [Icw] rated short-time withstand current |
1800 A 104 °F (40 °C) - 10 s
1000 A 104 °F (40 °C) - 30 s 850 A 104 °F (40 °C) - 1 min 560 A 104 °F (40 °C) - 3 min 440 A 104 °F (40 °C) - 10 min |
|
| associated fuse rating |
315 A gG <= 440 V
250 A aM <= 440 V |
|
| average impedance |
0.32 mOhm - Ith 315 A 50 Hz
|
|
| [Ui] rated insulation voltage |
1000 V IEC 60947-4-1
1500 V VDE 0110 group C |
|
| power dissipation per pole |
32 W AC-1
|
|
| mounting support |
Plate
|
|
| standards |
EN 60947-4-1
EN 60947-1 IEC 60947-4-1 IEC 60947-1 JIS C8201-4-1 |
|
| product certifications |
UL
ABS CCC DNV CB LROS (Lloyds register of shipping) RINA BV RMRoS |
|
| connections - terminals |
Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end
Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end Power circuit bar 2 32 x 4 mm Power circuit lugs-ring terminals 1 0.29 in² (185 mm²) Power circuit connector 1 0.29 in² (185 mm²) Power circuit bolted connection |
|
| tightening torque |
Control circuit 10.62 lbf.in (1.2 N.m)
Power circuit 309.78 lbf.in (35 N.m) |
|
| control circuit voltage limits |
Operational 0.85...1.1 Uc 50/60 Hz 131 °F (55 °C))
Drop-out 0.35...0.55 Uc 50/60 Hz 131 °F (55 °C)) |
|
| inrush power in VA |
805 VA 50 Hz 0.3 68 °F (20 °C))
|
|
| hold-in power consumption in VA |
55 VA 50 Hz 0.3 68 °F (20 °C))
|
|
| heat dissipation |
18…24 W
|
|
| operating time |
20...35 ms closing
7...15 ms opening |
|
| mechanical durability |
10 Mcycles
|
|
| maximum operating rate |
2400 cyc/h 131 °F (55 °C)
|
|
| compatibility code |
LC1F
|
| IP degree of protection |
IP20 front face with shrouds IEC 60529
IP20 front face with shrouds VDE 0106 |
|
|---|---|---|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
23…131 °F (-5…55 °C)
|
|
| ambient air temperature for storage |
-76…176 °F (-60…80 °C)
|
|
| permissible ambient air temperature around the device |
-40…158 °F (-40…70 °C)
|
|
| Maximum Height |
7.76 in (197 mm)
|
|
| Maximum Width |
8.21 in (208.5 mm)
|
|
| Maximum Depth |
7.13 in (181 mm)
|
|
| Net Weight |
12.24 lb(US) (5.55 kg)
|
| Category |
22336-CTR,F-LINE,AC,OPEN,NONREV
|
|
|---|---|---|
| Discount Schedule |
I12
|
|
| GTIN |
03389110460162
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
14.05 lb(US) (6.371 kg)
|
|
| Returnability |
No
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Package 1 Height |
8.46 in (21.5 cm)
|
|
| Package 1 width |
9.25 in (23.5 cm)
|
|
| Package 1 Length |
10.43 in (26.5 cm)
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information. |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
|
|
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
-
TeSys F LC1F2254M5
