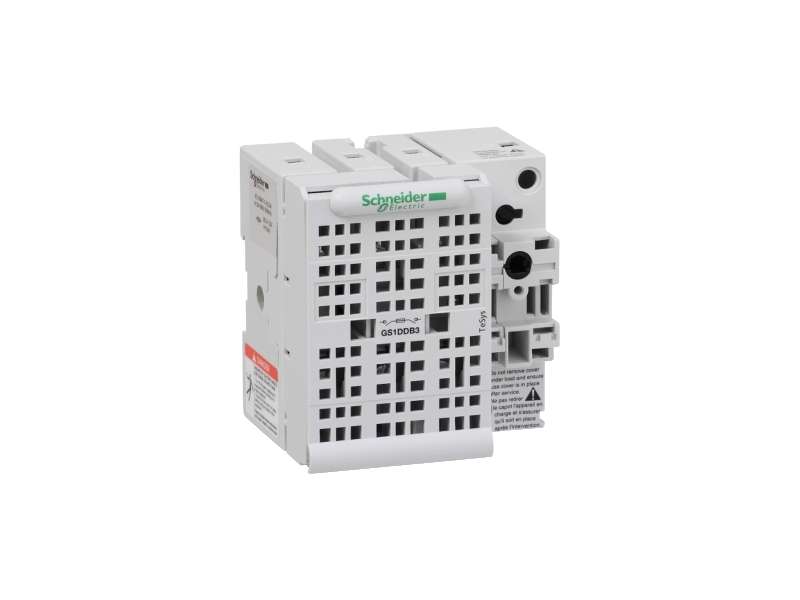

TeSys GS - switch-disconnector-fuse - 3 P - BS - 32 A
| range | TeSys |
|---|---|
| product name | TeSys GS |
| device short name | GS1 DD |
| product or component type | Switch-disconnector-fuse |
| device application | Protection |
| design | Compact |
| poles description | 3P |
| protected poles description | 3t |
| contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 32 A (at 40 °C) |
| [Ie] rated operational current |
20 A at 440 V 2 poles in series per phase DC-23A 20 A at 440 V 2 poles in series per phase DC-23B 32 A at 400...690 V AC-23A 32 A at 400...690 V AC-23B |
| fuse type | BS |
| fuse size | A1 |
| network type |
DC AC |
| network frequency | 50/60 Hz |
| type of operating handle |
External frontal External left side External right side Direct frontal |
|---|---|
| mounting support |
Plate Rail |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| rated operational power in W |
15 kW at 400 V 25 kW at 690 V |
| making capacity | 320 A at 400 V AC-23B |
| [Icm] rated short-circuit making capacity | 80 kA at 400 V with protection by gG fuses |
| breaking capacity | 256 A at 400 V (AC-23B) |
| short-circuit withstand | 5.5 kA |
| mechanical durability | 20000 cycles |
| electrical durability |
1500 cycles AC-23A 1500 cycles AC-23B 300 cycles DC-23A 300 cycles DC-23B |
| connections - terminals | Power circuit: screw-clamp terminals2.5…16 mm² flexible |
| tightening torque | Power circuit: 3 N.m - on screw-clamp terminals |
| standards | IEC 60947-3 |
|---|---|
| product certifications | CE |
| protective treatment | TH |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -40…80 °C |
| fire resistance | 960 °C body conforming to IEC 60695-2-1 |
| height | 98 mm |
| width | 96 mm |
| depth | 112 mm |
| net weight | 0.5 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 503.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 10.3 cm |
| Package 1 Length | 11.7 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 2.218 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
