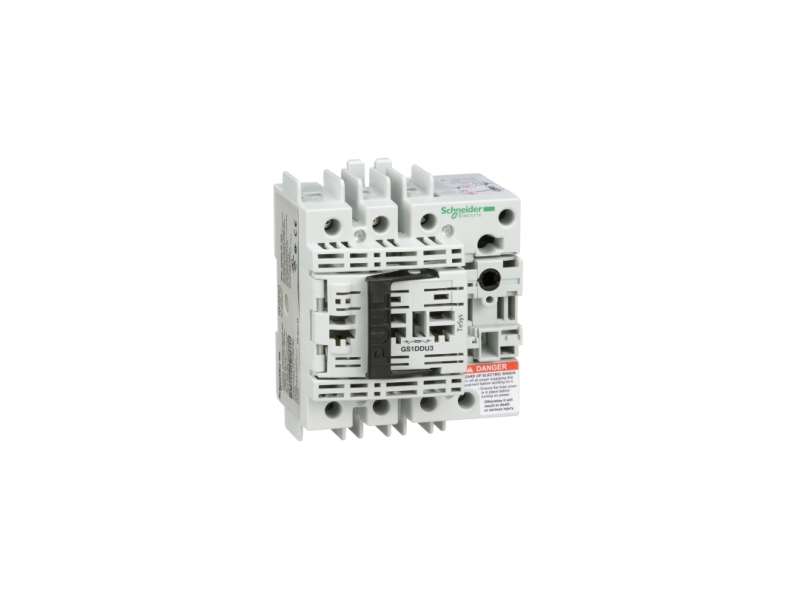

TeSys GS - switch-disconnector-fuse - 3 P - UL 30 A - fuse size J
| range | TeSys |
|---|---|
| product name | TeSys GS |
| device short name | GS1D |
| product or component type | Switch-disconnector-fuse |
| device application | Protection |
| design | Compact |
| poles description | 3P |
| protected poles description | 3t |
| contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 30 A (at 40 °C) |
| [Ie] rated operational current | 30 A |
| fuse type | UL |
| fuse size | J |
| network type |
AC DC |
| network frequency | 50/60 Hz |
| type of operating handle | External frontal |
|---|---|
| mounting support |
Plate Rail |
| [Ui] rated insulation voltage | 690 V |
| [Uimp] rated impulse withstand voltage | 8 kV |
| rated operational power in W |
15 kW at 400 V 18.5 kW at 500 V 25 kW at 690 V |
| short-circuit withstand | 5.5 kA |
| mechanical durability | 10000 cycles |
| electrical durability | 6000 cycles |
| connections - terminals | Power circuit: lugs-ring terminals2…6 mm² |
| tightening torque | Power circuit: 3 N.m |
| standards |
CSA C22.2 No 5 UL 489 |
|---|---|
| product certifications |
LOVAG LROS (Lloyds register of shipping) ASEFA |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -40…80 °C |
| fire resistance | 960 °C body conforming to IEC 60695-2-1 |
| height | 116 mm |
| width | 105 mm |
| depth | 99 mm |
| net weight | 0.7 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 639.0 g |
| Package 1 Height | 12.6 cm |
| Package 1 width | 13.6 cm |
| Package 1 Length | 15.7 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 5.589 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 77 cm |
| Warranty | 18 months |
|---|
