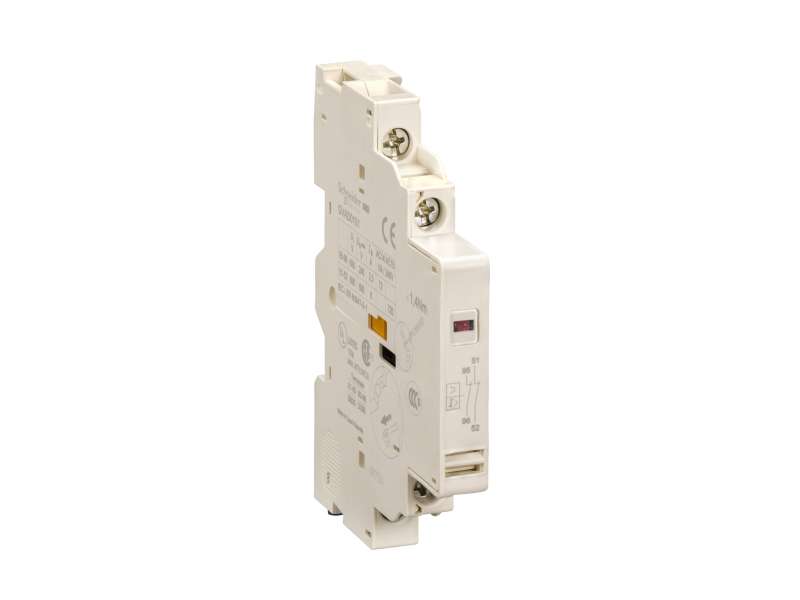

Schneider Electric TeSys GV2 & GV3 - pomoćni kontakt - 1 NC + 1 NC (greška) ; GVAD0101
TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault)...
VAT-exclusive price: 2.192,00 |
VAT-inclusive price: 2.630,40 |
TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault)
| range |
TeSys
|
|
|---|---|---|
| device short name |
GVAD
|
|
| product or component type |
Auxiliary contact block
|
|
| product compatibility |
GV3L
GV2P GV2LE GV2RT GV2L GV2ME GV3P |
|
| mounting location |
Left side
|
|
| auxiliary contacts operation |
Fault signal 1 NC
|
|
| pole contact composition |
2 NC
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-1
300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 |
|
|---|---|---|
| [Ue] rated operational voltage |
48...690 V AC
24...240 V DC |
|
| [Ith] conventional free air thermal current |
6 A
2.5 A for fault signalling |
|
| protection type |
GB2CB... circuit breaker
GG fuse 10 A |
|
| mechanical durability |
100000 cycles
|
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| rated operational power in VA |
300 VA at 48 V AC-15 - electrical durability: 100000 cycles
414 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles 36 VA at 24 V AC-14 - electrical durability: 1000 cycles 48 VA at 48 V AC-14 - electrical durability: 1000 cycles 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles |
|
| rated operational power in W |
120 W at 240 V DC-13 - electrical durability: 100000 cycles
140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles 15 W at 48 V DC-13 - electrical durability: 1000 cycles 24 W at 24 V DC-13 - electrical durability: 1000 cycles 9 W at 60 V DC-13 - electrical durability: 1000 cycles |
|
| tightening torque |
1.4 N.m - on screw clamp terminals
|
|
| height |
89 mm
|
|
| width |
9.3 mm
|
|
| depth |
66 mm
|
|
| net weight |
0.055 kg
|
| environmental characteristic |
Normal environment
|
|---|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
46 g
|
|
| Package 1 Height |
8.8 cm
|
|
| Package 1 width |
1.5 cm
|
|
| Package 1 Length |
6.6 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
500 g
|
|
| Package 2 Height |
9.5 cm
|
|
| Package 2 width |
10 cm
|
|
| Package 2 Length |
15.2 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
60
|
|
| Package 3 Weight |
3.425 kg
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
