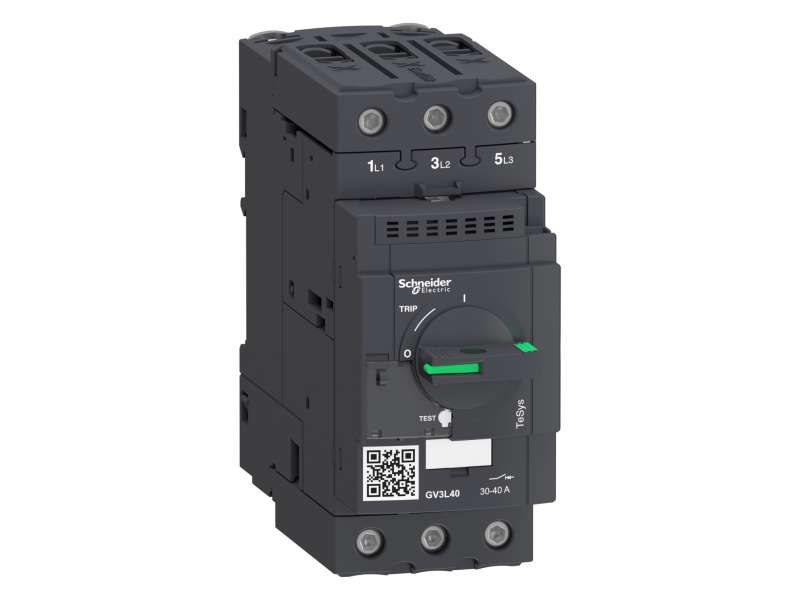

Schneider Electric TeSys GV3 - prekidač - prekostrujna zaštita - 40 A - EverLink BTR priključci;GV3L40
Motor circuit breaker, TeSys GV3, 3P, 40 A, magnetic, rotary handle, EverLink terminals...
VAT-exclusive price: 21.925,00 |
VAT-inclusive price: 26.310,00 |
Motor circuit breaker, TeSys GV3, 3P, 40 A, magnetic, rotary handle, EverLink terminals
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys GV3
|
|
| product or component type |
Circuit breaker
|
|
| device short name |
GV3L
|
|
| device application |
Motor
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| utilisation category |
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1 |
|
| network frequency |
50/60 Hz
|
|
| breaking capacity |
100 kA Icu at 230/240 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz 12 kA Icu at 500 V AC 50/60 Hz 6 kA Icu at 690 V AC 50/60 Hz 50 kA Icu at 400/415 V AC 50/60 Hz |
|
| [Ics] rated service short-circuit breaking capacity |
100 % at 230/240 V AC 50/60 Hz
100 % at 400/415 V AC 50/60 Hz 100 % at 440 V AC 50/60 Hz 50 % at 500 V AC 50/60 Hz 50 % at 690 V AC 50/60 Hz |
|
| trip unit technology |
Magnetic
|
|
| magnetic tripping current |
560 A
|
| fixing mode |
35 mm symmetrical DIN rail: clipped
Panel: screwed (with 3 x M4 screws) |
|
|---|---|---|
| operating position |
Any position
|
|
| motor power kW |
18.5 kW at 400/415 V AC 50/60 Hz
22 kW at 500 V AC 50/60 Hz 37 kW at 690 V AC 50/60 Hz |
|
| control type |
Rotary knob
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-2 6 kV
|
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
50000 cycles for AC-3 at 415 V
|
|
| maximum operating rate |
25 cyc/h
|
|
| connections - terminals |
EverLink BTR screw connectors 1 cable(s) 1…35 mm² solid
EverLink BTR screw connectors 2 cable(s) 1…25 mm² solid EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible without cable end EverLink BTR screw connectors 2 cable(s) 1…25 mm² flexible without cable end EverLink BTR screw connectors 1 cable(s) 1…35 mm² flexible with cable end EverLink BTR screw connectors 2 cable(s) 1…25 mm² flexible with cable end |
|
| tightening torque |
5 N.m on EverLink BTR screw connectors for cable 25 mm²
8 N.m on EverLink BTR screw connectors for cable 35 mm² |
|
| mechanical robustness |
Shocks: 15 Gn for 11 ms closed conforming to IEC 60068-2-27
Shocks: 30 Gn for 11 ms opened conforming to IEC 60068-2-27 Vibrations: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
|
| suitability for isolation |
Yes conforming to IEC 60947-1
|
|
| height |
132 mm
|
|
| width |
55 mm
|
|
| depth |
136 mm
|
|
| net weight |
0.96 kg
|
| standards |
EN/IEC 60947-2
EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 |
|
|---|---|---|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC ABS LROS (Lloyds register of shipping) DNV-GL BV |
|
| protective treatment |
TH
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| IK degree of protection |
IK09
|
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
|
| operating altitude |
0...3000 m
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
-
TeSys GV3 GV3L40
