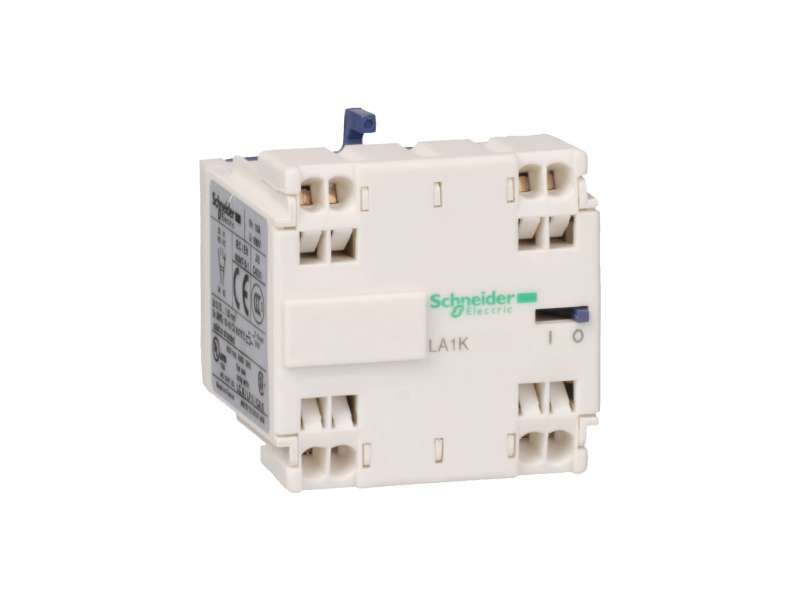

Schneider Electric TeSys K - pomoćni kontaktni blok - 1 NO + 1 NC - opružni priključci; LA1KN113
TeSys K - Auxiliary contact block - 1 NO + 1 NC - spring terminals...
VAT-exclusive price: 2.270,00 |
VAT-inclusive price: 2.724,00 |
TeSys K - Auxiliary contact block - 1 NO + 1 NC - spring terminals
| range |
TeSys
|
|
|---|---|---|
| range of product |
TeSys K control relay
TeSys K |
|
| device short name |
LA1
|
|
| product or component type |
Auxiliary contact block
|
|
| mounting location |
Front
|
|
| pole contact composition |
1 NO + 1 NC
|
|
| Contacts operation |
Instantaneous
|
|
| [Ue] rated operational voltage |
<= 690 V AC <= 400 Hz
|
|
| [Ui] rated insulation voltage |
690 V conforming to BS 5424
690 V conforming to IEC 60947 750 V conforming to VDE 0010 group C 600 V conforming to CSA C22.2 |
|
| [Ith] conventional free air thermal current |
10 A (at 50 °C)
|
|
| standards |
VDE 0660
IEC 60947 NF C 63-110 BS 5424 |
|
| product certifications |
UL
CSA |
| Irms rated making capacity |
110 A at <= 690 V AC conforming to IEC 60947
|
|
|---|---|---|
| permissible short-time rating |
80 A 1 s
60 A 500 ms 110 A 100 ms |
|
| associated fuse rating |
10 A gG at <= 690 V conforming to IEC 60947
10 A gG at <= 690 V conforming to VDE 0660 |
|
| minimum switching current |
5 mA
|
|
| minimum switching voltage |
17 V
|
|
| non overlap distance |
0.5 mm
|
|
| insulation resistance |
> 10 MOhm
|
|
| connections - terminals |
Spring terminals 1 cable(s) 0.75…1.5 mm²flexible without cable end
Spring terminals 1 cable(s) 0.75…1.5 mm²solid |
|
| depth |
35 mm
|
|
| net weight |
0.045 kg
|
| environmental characteristic |
Normal environment
|
|
|---|---|---|
| IP degree of protection |
IP2x conforming to VDE 0106
|
|
| protective treatment |
TC conforming to IEC 60068
|
|
| ambient air temperature for storage |
-50…80 °C
|
|
| ambient air temperature for operation |
-25…50 °C
|
|
| operating altitude |
2000 m without derating
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
34 g
|
|
| Package 1 Height |
3.5 cm
|
|
| Package 1 width |
3.5 cm
|
|
| Package 1 Length |
4 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
346 g
|
|
| Package 2 Height |
4 cm
|
|
| Package 2 width |
16 cm
|
|
| Package 2 Length |
18 cm
|
|
| Unit Type of Package 3 |
S02
|
|
| Number of Units in Package 3 |
100
|
|
| Package 3 Weight |
3.887 kg
|
|
| Package 3 Height |
15 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
