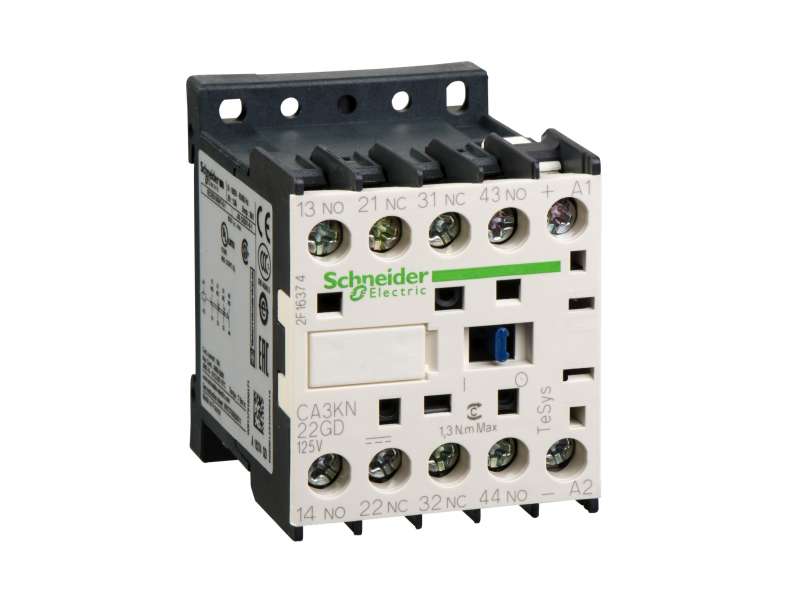

TeSys K control relay - 2 NO + 2 NC - <= 690 V - 125 V DC standard coil
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys CAK
|
|
| product or component type |
Control relay
|
|
| device short name |
CA3K
|
|
| contactor application |
Control circuit
|
|
| utilisation category |
AC-15
DC-13 |
|
| pole contact composition |
2 NO + 2 NC
|
|
| [Ue] rated operational voltage |
<= 690 V <= 400 Hz
|
|
| control circuit type |
DC standard
|
|
| [Uc] control circuit voltage |
125 V DC
|
| [Ith] conventional free air thermal current |
10 A (at 50 °C)
|
|
|---|---|---|
| Irms rated making capacity |
110 A conforming to IEC 60947
|
|
| associated fuse rating |
10 A gG conforming to IEC 60947
10 A gG conforming to VDE 0660 |
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947
750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14 |
|
| mounting support |
Plate
Rail |
|
| connections - terminals |
Screw clamp terminals 1 cable(s) 1.5…4 mm²solid
Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible without cable end |
|
| tightening torque |
1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm |
|
| control circuit voltage limits |
Operational: 0.8...1.15 Uc (at <50 °C)
Drop-out: 0.1...0.75 Uc (at <50 °C) |
|
| operating time |
10 ms coil de-energisation and NO opening
30...40 ms coil energisation and NO closing 15 ms coil de-energisation and NC closing 25...35 ms coil energisation and NC opening |
|
| mechanical durability |
20 Mcycles
|
|
| maximum operating rate |
10000 cyc/h
|
|
| immunity to microbreaks |
2 ms
|
|
| inrush power in W |
3 W (at 20 °C)
|
|
| hold-in power consumption in W |
3 W at 20 °C
|
|
| heat dissipation |
3 W
|
|
| minimum switching voltage |
17 V
|
|
| minimum switching current |
5 mA
|
|
| non overlap distance |
0.5 mm
|
|
| insulation resistance |
> 10 MOhm
|
|
| height |
58 mm
|
|
| width |
45 mm
|
|
| depth |
57 mm
|
|
| net weight |
0.225 kg
|
| standards |
BS 5424
IEC 60947 NF C 63-140 VDE 0660 |
|
|---|---|---|
| product certifications |
CSA
UL |
|
| IP degree of protection |
IP2x
|
|
| protective treatment |
TC conforming to IEC 60068
|
|
| ambient air temperature for operation |
-25…50 °C
|
|
| ambient air temperature for storage |
-50…80 °C
|
|
| operating altitude |
2000 m without derating
|
|
| flame retardance |
V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
|
| mechanical robustness |
Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
215 g
|
|
| Package 1 Height |
4.8 cm
|
|
| Package 1 width |
6.2 cm
|
|
| Package 1 Length |
6.5 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
40
|
|
| Package 2 Weight |
8.92 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
320
|
|
| Package 3 Weight |
80.94 kg
|
|
| Package 3 Height |
80 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
TeSys K D SK (pomoćni kontaktori) CA3KN22GD
