TeSys

TeSys LC1D.K

Capacitor duty contactor

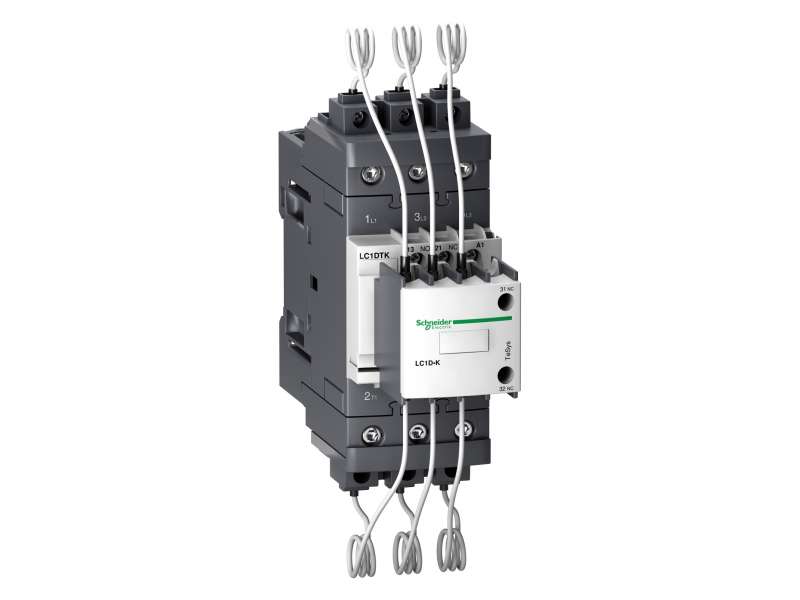

LC1DTK

Control

Power factor correction

AC-6b

3P

3 NO

Line interruption
Inside delta interruption

Power circuit: 690 V AC 50/60 Hz

22 kvar at 230 V AC 50 Hz 60 °C
40 kvar at 400 V AC 50 Hz 60 °C
43 kvar at 440 V AC 50 Hz 60 °C
67 kvar at 690 V AC 50 Hz 60 °C
20 kvar at 230 V AC 60 Hz 60 °C
40 kvar at 460 V AC 60 Hz 60 °C
50 kvar at 575 V AC 60 Hz 60 °C

AC at 50/60 Hz

220 V AC 50/60 Hz

1 NO + 2 NC instantaneous

300000 cycles at Ue 400 V
200000 cycles at Ue 690 V

DIN rail
Plate

EN/IEC 60947-1
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1

IECEE CB Scheme
UL
CSA

Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with or without cable end
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with or without cable end

Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm²
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35 mm²

240 cyc/h

type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

IP20 front face conforming to IEC 60529

-5…60 °C

-60…80 °C

0...3000 m

166 mm

55 mm

156 mm

1.3 kg

PCE

1

1.103 kg

6.7 cm

20 cm

22.7 cm

S03

6

7.191 kg

30 cm

30 cm
